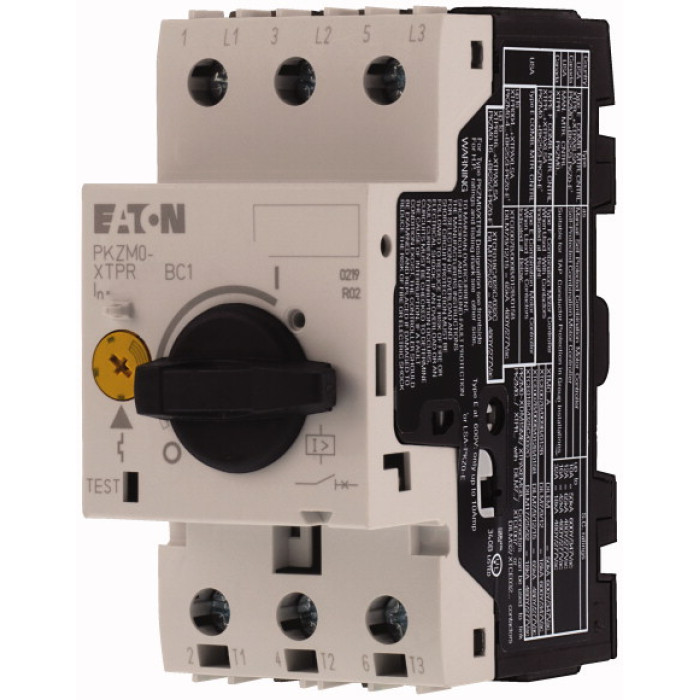

Automatic motor protection switch PKZM0-16A 50kA EATON

Description Automatic motor protection switch PKZM0-16A 50kA EATON

Type of engine: Automatic engine protection
Series: PKZM0
Vyrobnik: EATON
Nominal flow In: 16 A
Regulation range of thermal fan Ir: 10...16 A
Number of poles: 3
Nominal operating voltage Ue: 230-690 V AC
Nominal impulse voltage Uimp: 6 kV
Nominal insulation voltage Ui: 690 V
Nominal limiting voltage value with short circuit Icu (230 V AC): 50 kA
Rated short-circuit current limit Icu (400 V AC): 50 kA
Rated short-circuit current limit Icu (690 V AC): 20 kA
Rated short-circuit voltage Ics (230 V AC): 50 kA
Rated short-circuit voltage Ics (400 V AC): 50 kA
Rated short-circuit voltage Ics (400 V AC): 50 kA
Rated short circuit voltage short-circuit voltage Ics (690 V AC): 20 kA
Design of magnetic dispenser: 224 A
Protection stage (housing): IP00
Protection stage (terminal): IP20
Mounting method: On DIN-rail / screw fastening
Connection type: Screw terminals
Minimum span of rigid conductors: 1 mm²
Maximum span of hard conductors: 6 mm²
Minimum span of rigid conductors (h tip): 1 mm²
Maximum bristles conductors (with ferrule): 6 mm²
Terminal tightening torque: 1.7 Nm
Operating temperature range: -25...+55 °C
Conductor category IEC/EN 60947-2: A
Mechanical term service life: 100,000 cycles
Electrical service life: 100,000 cycles
Compliance with standards: IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1
Overall width: 45 mm
Overall height: 93 mm
Overall Glibin: 76 mm
Vag: 0.25 kg
