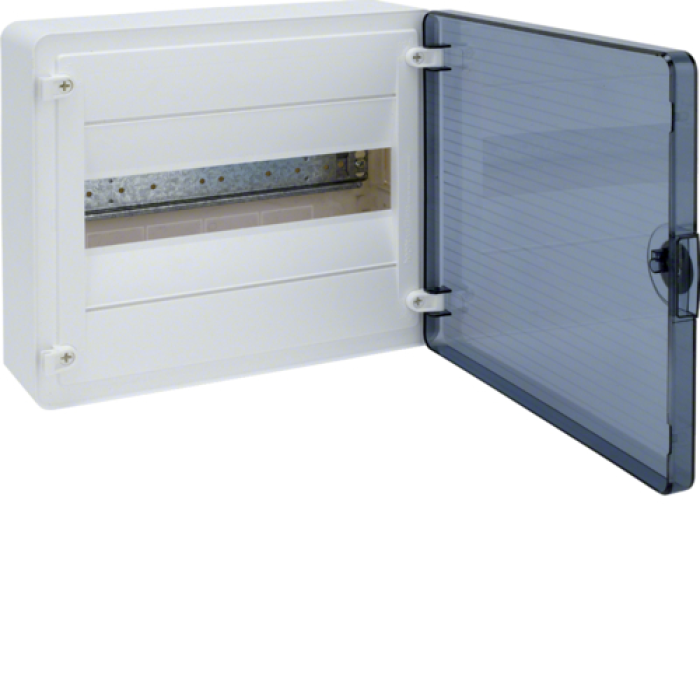

Charger panel with transparent doors, 12 modules (1x12), GOLF

Description Charger panel with transparent doors, 12 modules (1x12), GOLF

Installation type: Vbudovaniye
Number of modules: 12
Number of rows: 1
Door type: Prozori
Housing material: Impact-resistant polystyrene
Door material: Prozory polystyrene
Body color: White (RAL 9010)
Protection level IP: IP40
Electrosachist class: II (insulation)
Nominal voltage: 400 V alternating flow
Nominal flow: 63 A
External height: 254 mm
External width: 310 mm
External depth: 98.5 mm
Height of niche for installation: 226 mm
Width of niche for installation: 278 mm
Depth of niche for installation: 72 mm
Operating temperature: -5°C to +40°C
Storage temperature: -25°C to +60°C
Roasted with dart: 850°C
Terminal strength N (neutral): 2 x up to 16 mm² + 8 x up to 10 mm²
Strength of PE terminals (grounding): 2 x up to 16 mm² + 8 x up to 10 mm²
Tire material N/PE: Copper
Possibility of changing the side of the door: Yes
Possibility of sealing: Yes
Availability of cable entries: Front perforated
Door hinge type: Swivel lock
Compliance with standards: EN 60670-24, EN 62208
