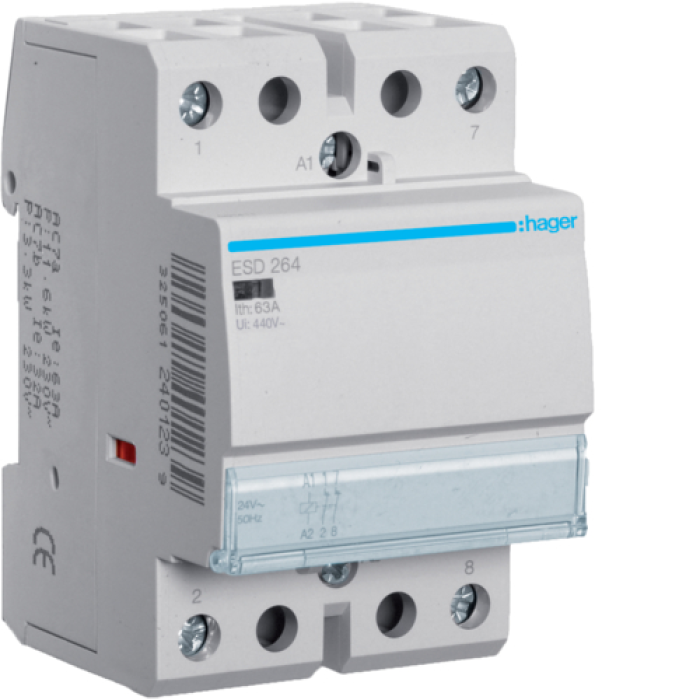

Contactor 63A, 2NC, 24V Hager ESD264

Description Contactor 63A, 2NC, 24V Hager ESD264

Virobnik: Hager
Model: ESD264
Device type: Modular contactor
Number of head poles: 2
Head contact configuration: 2 NC (normally closed)
Nominal flow (AC-1): 63 A
Nominal coil voltage (Uc): 24 V AC
Frequency: 50/60 Hz
Nominal operating voltage (Ue): 230 V AC / 400 V AC
Nominal insulation voltage (Ui): 500 V
Nominal pulse vitrification voltage (Uimp): 4 kV
Mechanical wear resistance: 1,000,000 cycles
Electrical wear resistance (AC-1): 30,000 cycles
Increased tension of the coil (increased): 20 VA
Increased tension of the cat (morning): 3.6 VA
Power supply per pole: 2.5 W
Cross-section of the connected conductor (bend): 1.5 - 25 mm²
Cross-section of the connected conductor (hard): 1.5 - 35 mm²
Mounting: DIN rail EN 60715
Number of modules (width): 3
Operating temperature range: -10 to +50 °C
Temperature range: -40 to +70 °C
Protection level (clem): IP20
Protection level (front panel): IP40 (at the housing)
Compliance with standards: EN 61095, IEC 61095
Maximum switched power (AC-1, 230V): 14.49 kW
Maximum switching voltage (AC-1, 400V): 25.2 kW
Vaga: 0.3 kg
