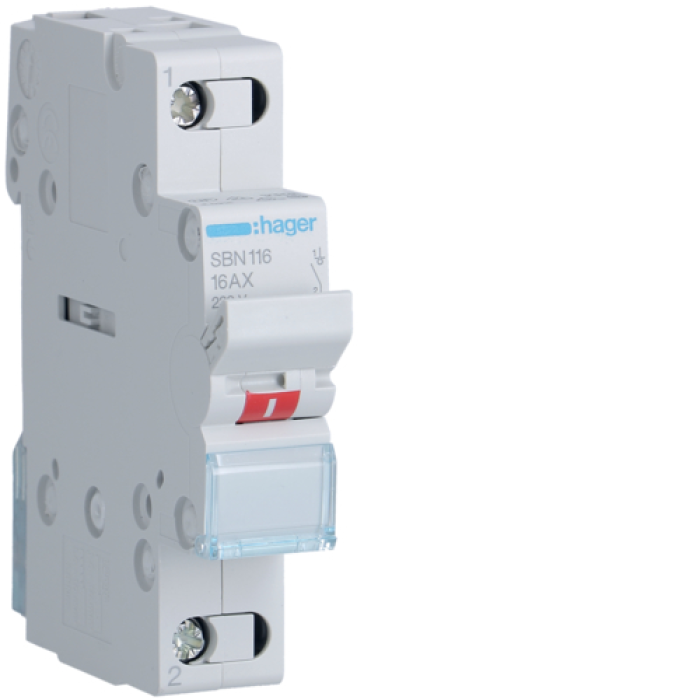

Hager Load Switch, 1-Pole 16A/230V, SBN116

Description Hager Load Switch, 1-Pole 16A/230V, SBN116

Device type: Vimikach navantazhenya
Number of poles: 1
Nominal power: 16 A
Nominal operating voltage: 230 V AC
Nominal insulation voltage (Ui): 250 V
Nominal Pulse vistimulation voltage (Uimp): 4 kV
Frequency: 50/60 Hz
Electrical wear resistance: 20,000 cycles
Mechanical wear resistance: 100,000 cycles
Installation type: On DIN rail
Width in modules: 1
Width: 17.5 mm
Height: 83 mm
Depth: 68 mm
Operating temperature: -20 to 50 °C
Storage temperature: -40 to 70 °C
Protection level: IP20
Maximum span Flexible cable: 10 mm²
Maximum crossbar for hard cable: 16 mm²
Tightening torque for terminals: 2.8 Nm
Compliance with standard: EN 60669-1
Vague: 0.081 kg
