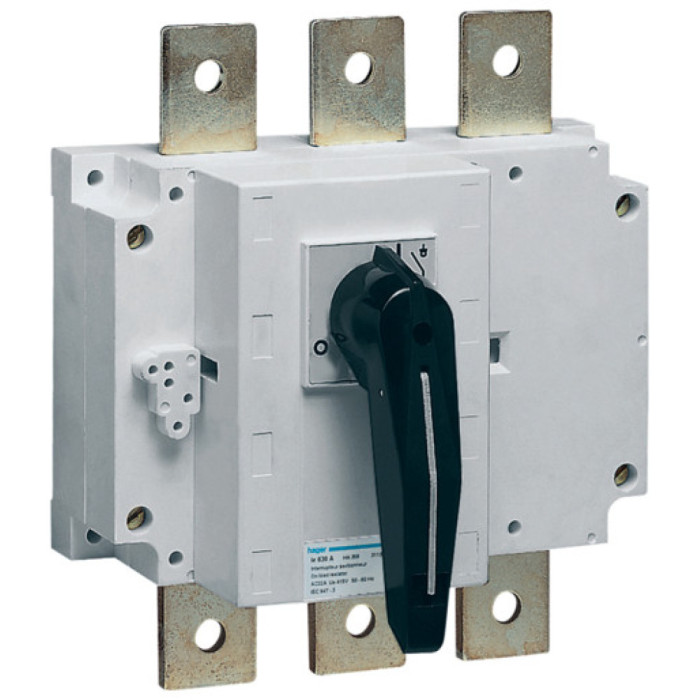

Hager load switch, enclosure up to 95 mm2, 3 pole 200 A, HA353

Description Hager load switch, enclosure up to 95 mm2, 3 pole 200 A, HA353

Type of extension: Vimikach navantazhennya
Virobnik: Hager
Model: HA353
Number of poles: 3
Nominal flow (In): 200 A
Nominal operating voltage (Ue): 400 V AC
Nominal insulation voltage (Ui): 750 V
Nominal impulse voltage (Uimp): 8 kV
Drying category: AC-23B
Maximum conductor connection overcut: 95 mm²
Minimal conductor connection cross-section: 25 mm²
Mounting type: Panel mounting
Protection level (IP): IP20
Mechanical wear resistance: 15000 cycles
Electrical wear resistance (AC-23B): 1500 cycles
Nominal short-hour vitrification flow (Icw) (1s): 4 kA
Nominal short-circuit current (with gG protectors): 50 kA (at 400 V)
Operating temperature range: -25 to +70 °C
Temperature range Saving: -40 to +80 °C
Possibility of blocking at the position "Vimkneno": Yes
Contact position indication: Yes
