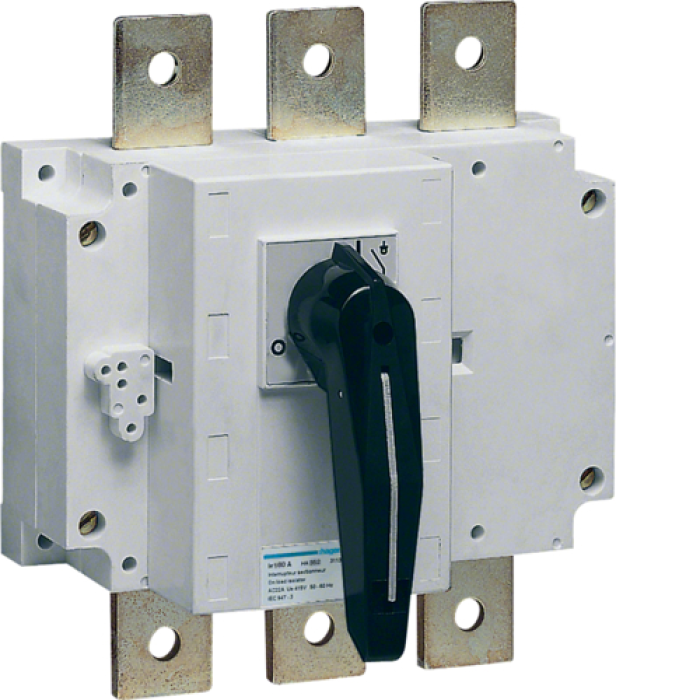

Hager load switch, enclosure up to 95 mm2, 3 pole 160 A, HA352

Description Hager load switch, enclosure up to 95 mm2, 3 pole 160 A, HA352

Virobnik: Hager
Model: HA352
Type of virobu: Vimikach navantazhennya
Number of poles: 3P
Nominal flow (In): 160 A
Nominal operating voltage (Ue): 400 V AC
Maximum rated operating voltage (Ue): 690 V AC
Nominal insulation voltage (Ui): 750 V
Nominal impulse voltage (Uimp): 8 kV
Frequency: 50/60 Hz
Vikoristan category AC-22A at 400 V: 160 A
Vikoristan category AC-23A at 400 V: 160 A
Power supply category DC-22A at 220 V (2 poles in series): 160 A
Power supply category DC-22A at 440 V (3 poles in series): 125 A
Nominal short-circuit current (Icc): 50 kA (with gG/gL 160 A)
Electrical wear resistance: 1500 cycles (for AC-22A)
Mechanical wear resistance: 10000 cycles
Mounting type: Panel mounting (front)
Maximum cable cut: 95 mm²
Terminal protection level: IP20
Front panel protection level (when installed in a closet): IP65
Operating temperature range: -20°C to +50°C
Saving temperature range: -40°C to +70°C
Overall dimensions (WxHxD) base without handle: 70x125x69 mm
Vaga: 0.76 kg
Compliance with standards: IEC/EN 60947-3
