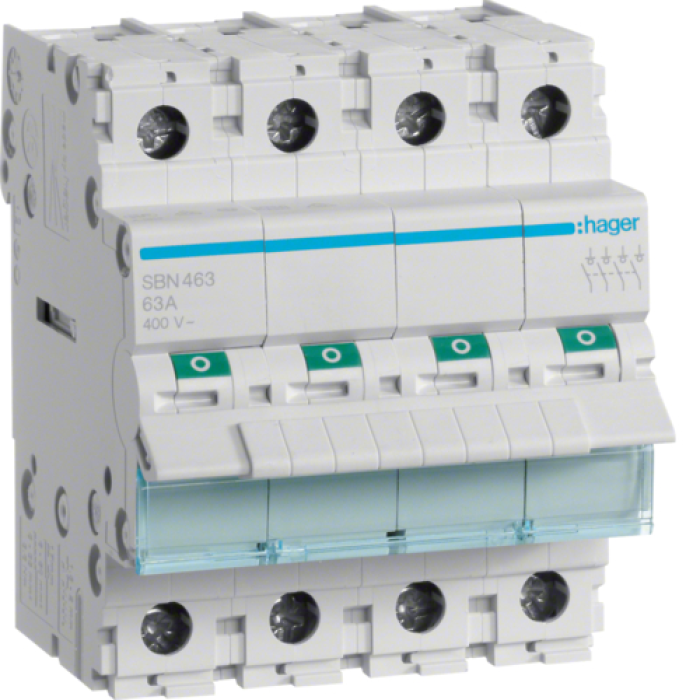

Hager Load Switch, 4-Pole 63A/400V, SBN463

Description Hager Load Switch, 4-Pole 63A/400V, SBN463

Model: SBN463
Vyrobo type: Vimikach navantazhenya
Number of poles: 4
Nominal flow: 63 A
Nominal operating voltage of alternating flow: 400 V AC
Nominal frequency: 50/60 Hz
Nominal insulation voltage (Ui): 500 V
Nominal pulse vitrification voltage (Uimp): 6 kV
Standing category: AC-22A
Nominal short-hour vitrification voltage (Icw): 10 kA (1s)
Electrical Wear resistance: 10,000 cycles
Mechanical wear resistance: 100,000 cycles
Crossing the connected hard cable: 1.5 - 35 mm²
Crossing the connecting cable cable: 1.5 - 25 mm²
Terminal tightening torque: 2.8 Nm
Mounting type: DIN rail
Width in modules (18 mm): 4
Protection level of housing: IP20
Protection stage with connected wires: IP40
Operating temperature range: -20 to 50 °C
Saving temperature range: -40 to 70 °C
Jack height: 83 mm
Jack width: 70 mm
Jack installation depth: 70 mm
Weight: 0.352 kg
Compliance with standard: IEC/EN 60947-3
