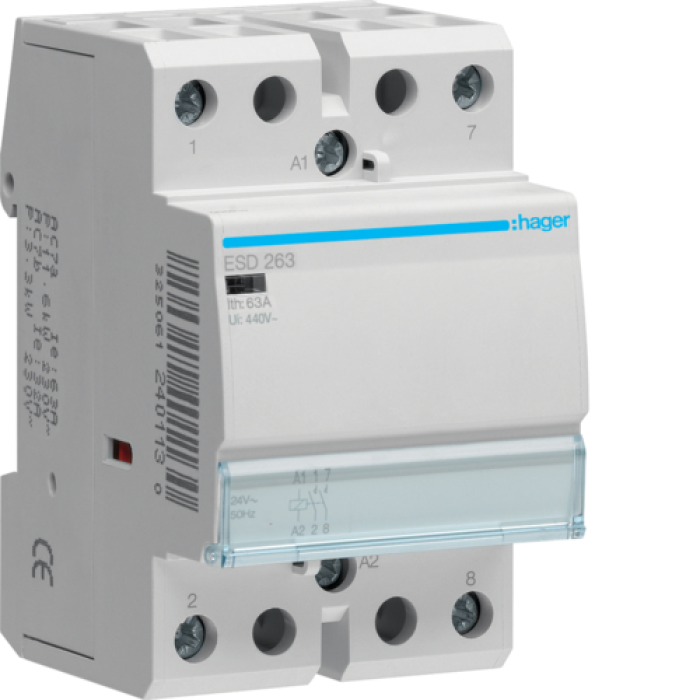

Contactor 63A, 2HB, 24V Hager ESD263

Description Contactor 63A, 2HB, 24V Hager ESD263

Type of contactor: Modular contactor
Model: ESD263
Number of poles: 2P
Type of contacts: 2NO
Nominal flow: 63 A
Coil voltage: 24 V AC
Nominal operating voltage (Ue): 230/400 V AC
Nominal frequency: 50/60 Hz
Victory category: AC-1
Rated operating voltage AC-1: 63 A
Nominal operating voltage AC-1: 400 V AC
Victory category: AC-3
Nominal working strum AC-3: 40 A
Nominal operating voltage AC-3: 400 V AC
Nominal voltage AC-3 (230V): 10 kW
Nominal voltage AC-3 (400V): 18.5 kW
Nominal impulse Vitrimuvan voltage (Uimp): 4 kV
Nominal insulation voltage (Ui): 400 V
Cover frequency of the coil: 50/60 Hz
Current voltage of the coil (on): 32 VA
Currency of the coil (moment): 6.8 VA
Mechanical Wear resistance: 10,000,000 cycles
Electrical wear resistance (AC-1): 100,000 cycles
Implementation hour: 10-30 ms
Release hour: 10-25 ms
Mounting: DIN rail
Width in DIN modules: 2 modules
Height: 83 mm
Width: 36 mm
Depth (from mounting surface): 60 mm
Security level (housing): IP20
Security level (terminal): IP20
Terminal type: Screw
Cable cut (hard, 1 conductor): 10-35 mm²
Cable cut (hard, 2 conductors): 1.5-16 mm²
Cable cut (short, 1 conductor): 10-25 mm²
Cable cut (hard, 2 conductors): 1.5-16 mm²
Terminal tightening torque: 2.5 Nm
Operating temperature range: -20...+50 °C
Saving temperature range: -40...+70 °C
Maximum tightening of lamp lamps (rozzryvaniya lamps): 4000 W
Maximum intensity of lamp lamps (fluorescent lamps EMPP compensated): 2500 VA
Maximum intensity of lamp lamps (fluorescent lamps EMPP uncompensated): 2500 VA
Maximum intensity of lamp lamps (LED lamps): 2000 W
Maximum lamp intensity (halogen lamps): 4000 W
