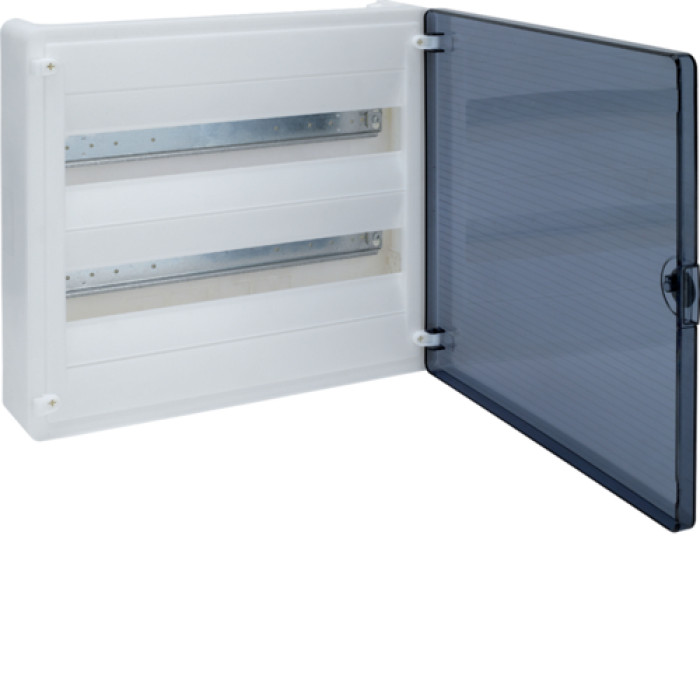

Charger panel with transparent doors, 36 mod. (2x18), GOLF

Description Charger panel with transparent doors, 36 mod. (2x18), GOLF

Series: GOLF
Article: VS218TD
Installation type: Vbudovaniye
Number of modules: 36
Number of rows: 2
Number of modules per row: 18
Door type: Prozori
Housing material: ABS plastic
Body color: White (RAL 9010)
Door material: Plastic (polycarbonate)
Protection level: IP40
Electrosachist class: II (insulation)
Resistance to mechanical impacts: IK07
Nominal flow: 63 A
Nominal voltage: 400 V alternating flow
Nominal insulation voltage: 400 V changeover
Operating temperature range: -25°C to +60°C
Temperature range: -35°C to +70°C
Overall height: 489 mm
Overall width: 400 mm
Overall depth: 96.5 mm
Height of the niche for installation: 470 mm
Width of niche for installation: 380 mm
Depth of niche for installation: 72 mm
Glibin added: 72 mm
Height of the protruding part above the wall: 24.5 mm
PE terminal (earth protection): 1x (2x16 mm² + 14x10 mm²)
Clemie N (neutral): 1x (2x16 mm² + 14x10 mm²)
Door opening angle: 180°
Possibility of re-hanging doors: Yes
Standard: EN 62208
