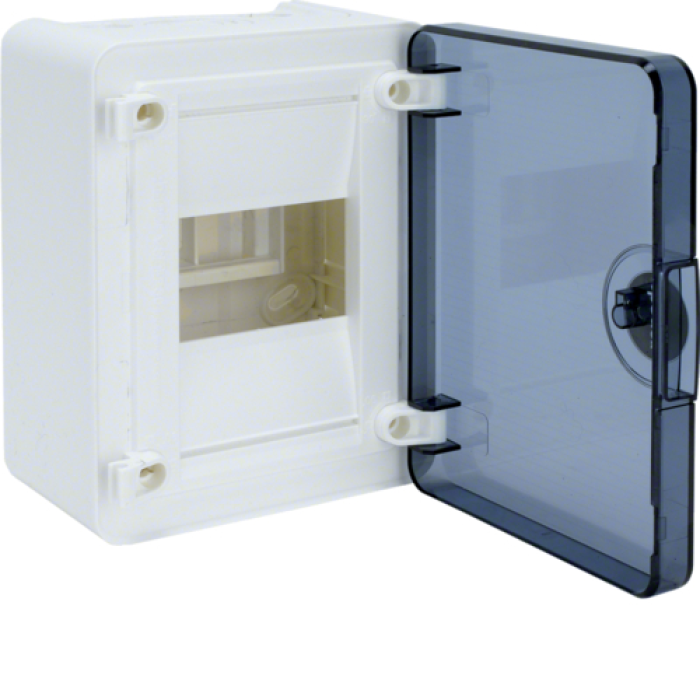

Charger panel with transparent doors, 4 modules (1x4), GOLF

Description Charger panel with transparent doors, 4 modules (1x4), GOLF

Installation type: Vbudovaniye
Number of modules: 4
Number of rows: 1
Door type: Prozori
Body material: Thermoplastic
Door material: Polycarbonate
Protection level IP: IP40
Step zakhistu IK: IK07
Class for the electrosachist: II
Nominal operating voltage: 400 Volts
Nominal flow: 63 A
Operating temperature: -25 to +60 °C
Storage temperature: from -35 to +70 °C
Overall height: 220 mm
Overall width: 135 mm
Overall depth: 99.5 mm
Mounting height of the visor: 196 mm
Installation width of the visor: 92 mm
Mounting depth of niche: 72 mm
Body color: White (RAL 9010)
Color of doors: Prosorium of dim parts
Availability of DIN rail: Yes
DIN rail material: Galvanized steel
Number of DIN rails: 1
Ground terminal: 1x(1.5-16 mm²) + 3x(1.5-10 mm²)
Neutral terminals: 1x(1.5-16 mm²) + 3x(1.5-10 mm²)
Possibility of changing the side of the door: Yes
Possibility of sealing: Yes
Compliance with standards: EN 60670-24, EN 62208
