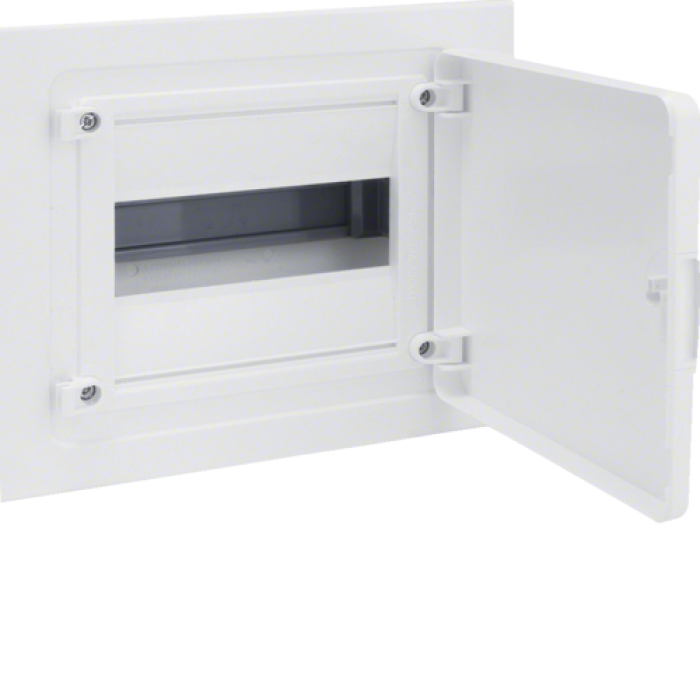

Shield with white doors, 8 models (1x8), GOLF

Description Shield with white doors, 8 models (1x8), GOLF

Type of virobu: Rosemount shield
Series: Golf
Model: VF108PD
Number of modules: 8
Number of rows: 1
Installation type: In-built
Body (base) material: Impact-resistant plastic
Body color (base): Light gray
Door material: Impact-resistant plastic
Door colour: White (RAL 9010)
Protection level IP: IP40
Electrical safety class: II (all insulation)
Nominal operating voltage: 400 V AC
Nominal flow: 63 A
Tested with roasted dart: 850 °C (in accordance with EN 60670-24)
Tool grip: 70 °C (in accordance with EN 60670-24)
Height: 224 mm
Width: 218 mm
Glibin: 99.5 mm
Installation depth: 72 mm
Operating temperature: -5 to +60 °C
Storage temperature: -25 to +70 °C
Clemie PE/N: B kit
Terminal material PE/N: Brass
Type of terminals PE/N: Shvidkoznіmnі
PE terminal capacity (connection/reconnection): 2x16 mm², 2x10 mm², 4x6 mm²
Terminal capacity N (connection/reconnection): 2x16 mm², 2x10 mm², 4x6 mm²
Possibility of re-hanging doors: Yes
Door lock: No (optional)
