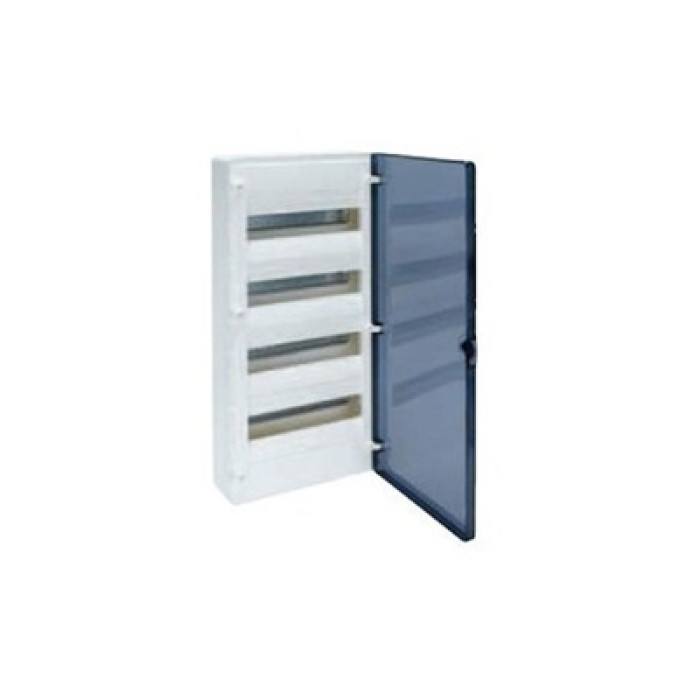

Charger panel with transparent doors, 48 ​​mod. (4x12), GOLF

Description Charger panel with transparent doors, 48 ​​mod. (4x12), GOLF

Installation type: Vbudovaniye
Door type: Prozori
Number of modules: 48
Number of rows: 4
Number of modules in a row: 12
Housing material: Impact-resistant thermoplastic
Door material: Impact-resistant thermoplastic
Body color: White
Body color code: RAL 9010
Color of doors: Prosorium
Protection level IP: IP30
Class zakhistu: II
Nominal voltage: 400 V AC
Nominal flow: 63 A
Tested with roasted dart: 850 °C
Operating temperature: -25 to +60 °C
Storage temperature: -35 to +80 °C
Water content at 40°C: up to 50%
Water content at 20°C: up to 90%
Outside height: 720 mm
Outside width: 305 mm
Zagalna depth: 96 mm
Height of the niche for installation: 695 mm
Width of niche for installation: 280 mm
Glibin niche for installation: 72 mm
Vaga: 3.5 kg
Number of PE terminal blocks: 2
Number of terminal points PE: 42
Number of large terminal points PE: 8
Maximum conductor overcut for large PE terminal points: 16 mm²
Number of small terminal points PE: 34
Maximum conductor overcut for small PE terminal points: 10 mm²
Number of terminal blocks N: 2
Number of terminal points N: 42
Number of great terminal points N: 8
Maximum conductor overcut for large terminal points N: 16 mm²
Number of small terminal points N: 34
Maximum conductor overcut for small terminal points N: 10 mm²
Number of DIN rails: 4
Possibility of installing a lock: Yes
Directly through the door: Zminniy
Appearance standard: EN 61439-3
