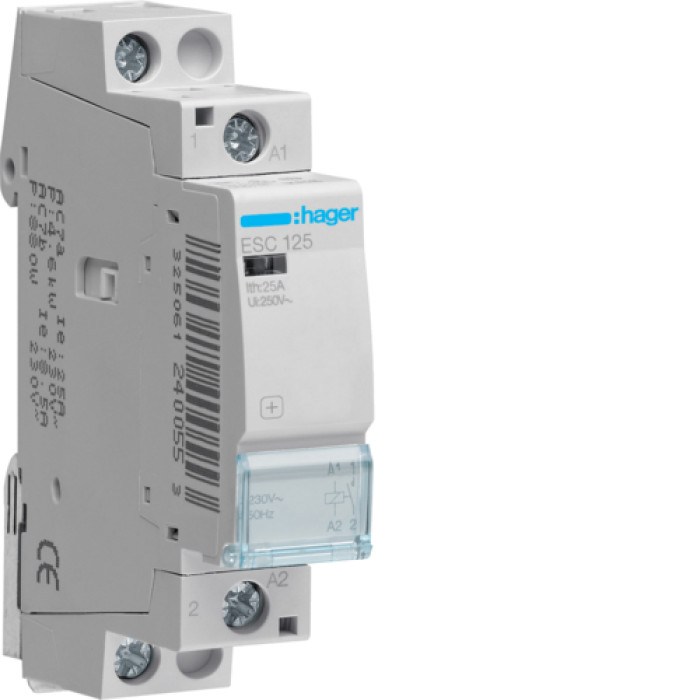

Contactor 25A, 1HB, 230V Hager ESC125

Description Contactor 25A, 1HB, 230V Hager ESC125

Nominal working stage AC-1: 25 A
Nominal operating stage AC-3 (230V): 9 A
Nominal power AC-3 (230V): 1.5 kW
Number of head contacts: 1 НВ
Number of additional contacts: 0
Nominal coil voltage (Uc): 230 V AC
Frequency: 50/60 Hz
Nominal operating voltage (Ue): 250 V AC
Nominal insulation voltage (Ui): 440 V
Nominal impulse voltage (Uimp): 4 kV
Electrical durability (AC-1): 100,000 cycles
Mechanical durability: 1,000,000 cycles
Increased tension of the coil (on): 32 VA
Increased tension of the cat (morning): 4.5 VA
Maximum intensity of frying lamps: 2000 W
Maximum intensity of halogen lamps: 2000 W
Maximum intensity of compact fluorescent lamps: 250 W
Maximum intensity of LED lamps: 250 W
Maximum intensity of fluorescent lamps (compensated): 850 W
Protection level (clem): IP20
Protection level (attachments near the housing): IP40
Width: 1 module (18 mm)
Mounting method: DIN rail
Operating temperature range: -10 to +50 °C
Temperature range: -40 to +80 °C
Cross-section of hard cable connection: 1.5 - 6 mm²
When connecting the cable: 1.5 - 6 mm²
Terminal tightening torque: 1.2 Nm
Compliance with standards: EN 61095
