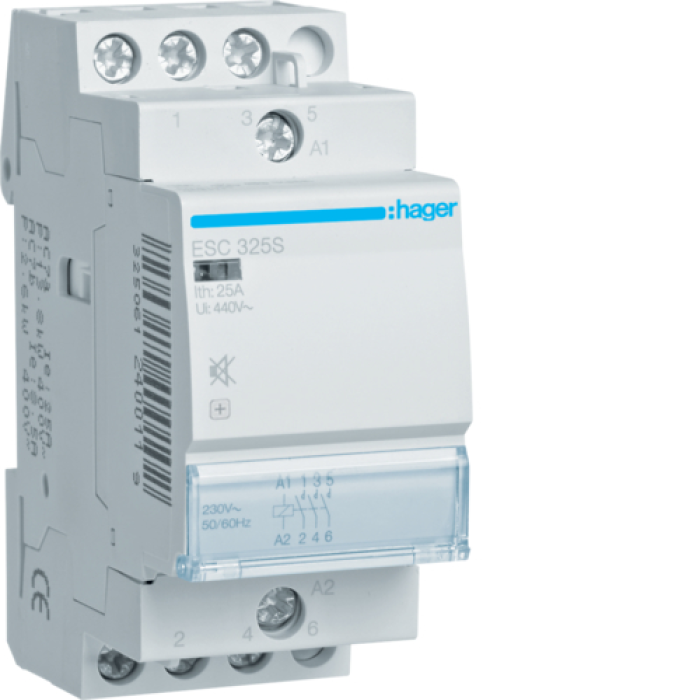

Silent contactor 25A, 3HB, 230V Hager ESC325S

Description Silent contactor 25A, 3HB, 230V Hager ESC325S

Virobnik: Hager
Model: ESC325S
Type of device: Modular contactor
Robot principle: Silent
Number of head poles: 3
Head contact configuration: 3 HB
Nominal flow (AC-1): 25 A
Nominal flow (AC-7a): 25 A
Nominal flow (AC-7b): 8.5 A
Rated operating voltage of head contacts (Ue): 250 V AC
Nominal operating voltage of head contacts (Ue) (three-phase): 400 V AC
Maximum mutated power (1-phase, AC-7a, 230V): 5.8 kW
Maximum switching power (3-phase, AC-7a, 400V): 17.4 kW
Engine power (1-phase, 230V): 1.5 kW
Engine power (3-phase, 400V): 4 kW
Nominal control coil voltage (Uc): 230 V AC
Control coil voltage frequency: 50/60 Hz
Increased tension of the coil (attraction): 6.8 VA
Reduced tension of the cat (morning): 1.5 VA
Nominal insulation voltage (Ui): 440 V
Nominal impulse voltage (Uimp): 4 kV
Mechanical wear resistance: 1,000,000 cycles
Electrical wear resistance (AC-7a): 200,000 cycles
Width: 2 modules (36 mm)
Mounting: 35 mm DIN rail
Operating temperature range: -10...+50 °C
Temperature range: -40...+80 °C
Protection level: IP20
Maximum cutting of hard cable for head contacts: 25 mm²
Maximum wire cut for head contacts: 16 mm²
Maximum overcut of hard cable for fusible contacts: 10 mm²
Maximum cable overcut for fusible contacts: 6 mm²
Maximum short-circuit current with captor gG 25A: 3 kA
Noise level: < 20 dB
Compliance with standards: EN 61095, IEC 1095
