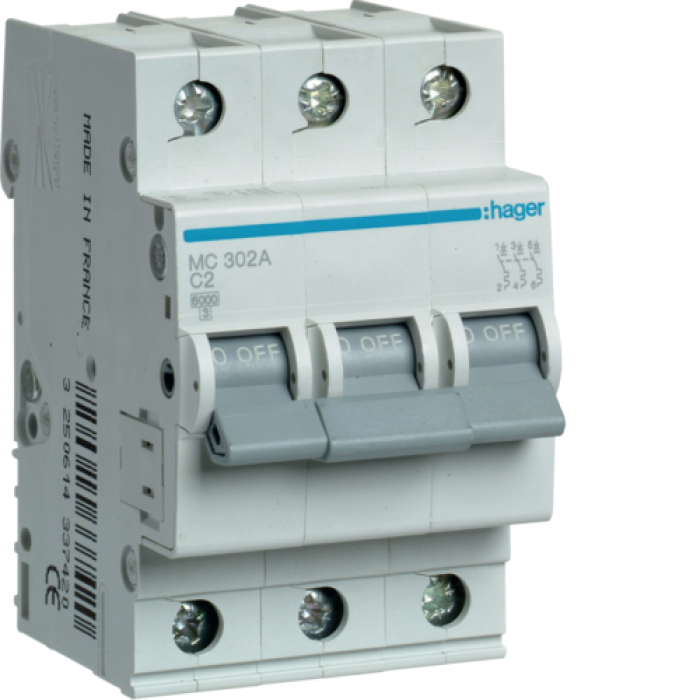

Hager 3P 6kA C-2A 3M Circuit Breaker, MCN302

Description Hager 3P 6kA C-2A 3M Circuit Breaker, MCN302

Article: MCN302
Number of poles: 3
Nominal flow, In: 2 A
Application characteristics: C
Nominal voltage (short circuit), Icn: 6 kA
Width in DIN modules: 3
Nominal operating voltage, Ue: 230/400 V AC
Nominal insulating voltage, Ui: 500 V
Nominal impulse voltage, Uimp: 4 kV
Frequency: 50/60 Hz
Voltage type: AC
Energy class: 3
Sputter type: Thermomagnetic
Protection level IP: IP20
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Max. hard cable span: 35 mm²
Max. cable girder: 25 mm²
Torque: 2.8 Nm
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Standard: EN 60898-1
Mounting type: DIN rail
Height: 83 mm
Width: 52.5 mm
Glibin: 70 mm
Overvoltage category: III
Connections: Gwent clamps
