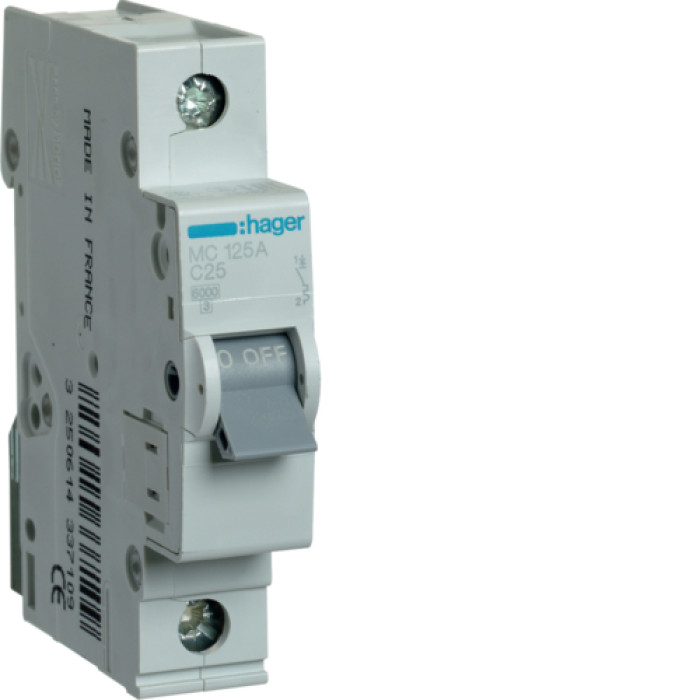

Hager 1P 6kA C-25A 1M Circuit Breaker, MCN125

Description Hager 1P 6kA C-25A 1M Circuit Breaker, MCN125

Product type: Automatic vimikach
Virobnik: Hager
Series: MCN
Article/Model: MCN125
Number of poles: 1
Nominal flow (In): 25 A
Design characteristic (curve): C
Nominal voltage (Un): 230 V AC
Nominal voltage (Icn) at 230V AC: 6 kA
Nominal voltage (Ics): 6 kA
Frequency: 50/60 Hz
Mounting type: DIN rail
Width: 1 module (18 mm)
Height: 83 mm
Glibina: 68 mm
Protection level (IP) terminal: IP20
Protection level (IP) of the device (installed): IP40
Operating temperature range: -25...+70 °C
Temperature range: -40...+80 °C
Maximum cable span for hard conductor: 25 mm²
Maximum cable span for wire conductor: 16 mm²
Terminal tightening torque: 2.8 Nm
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Energy class: 3
Standard: EN 60898-1
Insulation voltage (Ui): 500 V
Impulse voltage (Uimp): 4 kV
Total power consumption at nominal flow: 3.6 W
Possibility of connecting additional accessories: Yes
