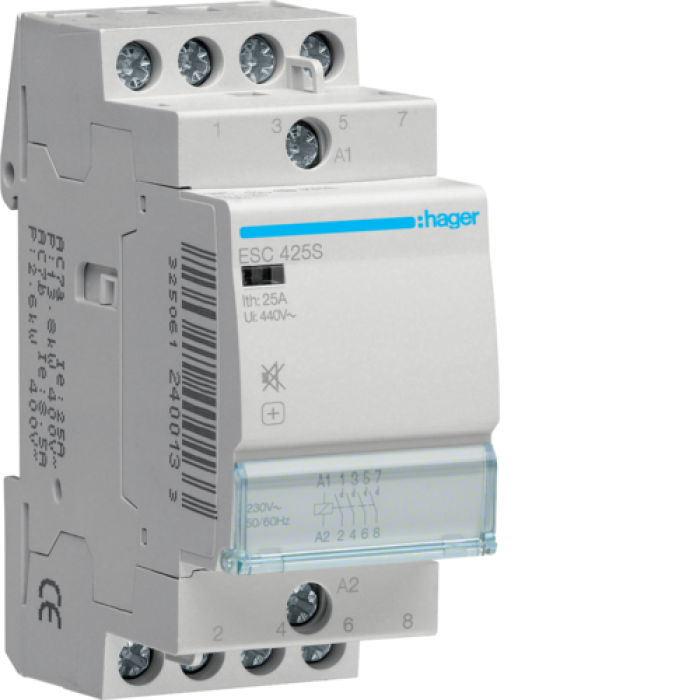

Silent contactor 25A, 4HB, 230V Hager ESC425S

Description Silent contactor 25A, 4HB, 230V Hager ESC425S

Type of device: Modular contactor
Model: ESC425S
Volator: Hager
Nominal flow (AC-1 / AC-7a): 25 A
Nominal flow (AC-3 / AC-7b): 9 A
Capacity of normally open contacts (NV): 4
Nominal coil voltage (Us): 230 V AC
Frequency of coil voltage: 50/60 Hz
Nominal operating voltage (Ue): 230/400 V AC
Maximum switch voltage (AC-1, 230 V): 5.75 kW
Maximum switched power (AC-1, 400V): 10 kW
Maximum switching power (AC-3, 230V): 2.3 kW
Maximum switching power (AC-3, 400V): 4 kW
Category of power supply: AC-1, AC-3, AC-7a, AC-7b
Mechanical wear resistance: 1,000,000 cycles
Electrical wear resistance (AC-1): 100,000 cycles
Module capacity (width): 2
Width: 36 mm
Height: 83 mm
Glibina: 68 mm
Protection level (terminal): IP20
Protection stage (front panel): IP40
Operating temperature range: -10 °C to +50 °C
Saving temperature range: -40 °C to +80 °C
Maximum span of the connected cable (flexible): 10 mm²
Maximum crossbar of the connected cable (hard): 16 mm²
Terminal tightening torque: 1.2 Nm
Compliance with standards: IEC/EN 61095
Indication Contact me: Nayavna
Spozhivana tension of the coil (on): 4.3 VA
Suppressed tension of the coil (morning): 2.6 VA
Hour of use (on): 10-25 ms
Hour of use (off): 10-20 ms
Mounting type: On DIN rail
Terminal type: Screw
Electrical shock protection class: II
Construction: Silent
Weight: 0.224 kg
