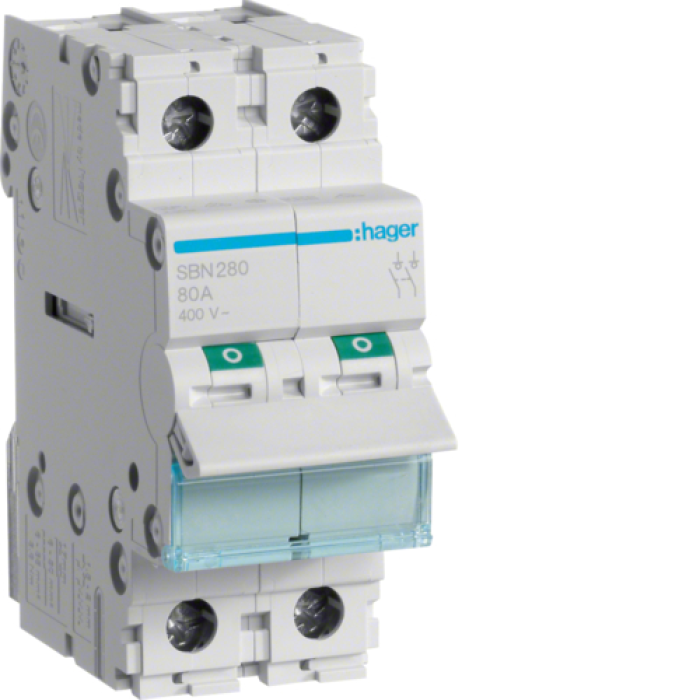

Hager Load Switch, 2-Pole 80A/400V, SBN280

Description Hager Load Switch, 2-Pole 80A/400V, SBN280

Type of extension: Vimikach navantazhennya
Virobnik: Hager
Series: SBN
Model: SBN280
Number of poles: 2P
Nominal flow: 80 A
Nominal operating voltage (Ue): 400 V AC
Nominal insulation voltage (Ui): 500 V
Nominal impulse voltage (Uimp): 6 kV
Nominal frequency: 50/60 Hz
Drying category: AC-22A
Nominal short-hour vitrification strum (Icw): 1.5 kA / 1 s
Mechanical life: 20,000 cycles
Electrical life: 10000 cycles
Width in modules: 3 modules
Height: 83 mm
Glibin: 70 mm
Mounting method: On DIN rail
Protection level IP (terminal): IP20
Protection level IP (front panel): IP40
Operating temperature range: -20 to +50 °C
Temperature range: -40 to +70 °C
Maximum length of hard cable: 50 mm²
Maximum cable span: 35 mm²
Connection type: Screw terminals
Terminal tightening torque: 3.5 Nm
