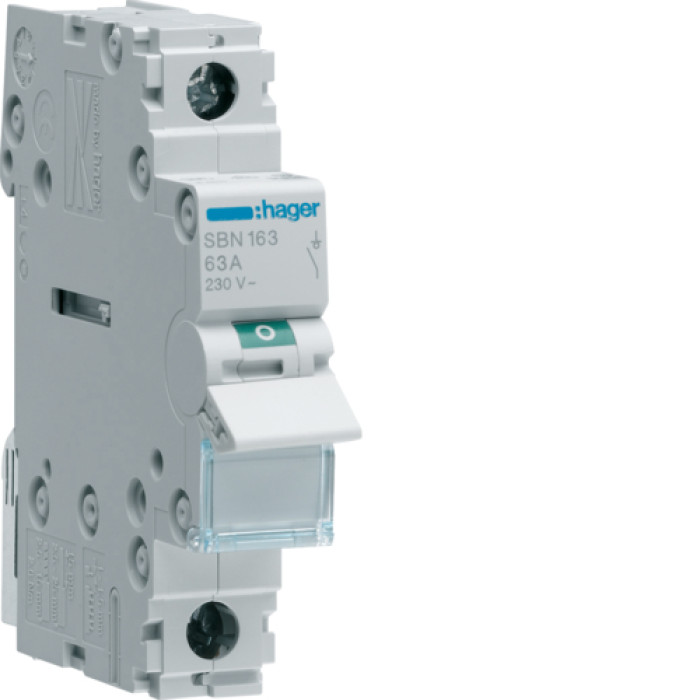

Hager Load Switch, 1-Pole 63A/230V, SBN163

Description Hager Load Switch, 1-Pole 63A/230V, SBN163

Type of extension: Vimikach navantazhennya
Model/Article: SBN163
Virobnik: Hager
Number of poles: 1P
Nominal flow In: 63 A
Rated operating voltage Ue: 230 V AC
Nominal insulating voltage Ui: 500 V
Nominal impulse voltage Uimp: 6 kV
Nominal frequency: 50/60 Hz
Vikoristan category: AC-22A
Electric wear resistance: 10000 cycles
Mechanical wear resistance: 20,000 cycles
Nominal short-circuit current Inc: 10 kA (with gG 63A capacitor)
Nominal short-hour vitrification flow Icw (1s): 10 kA
Mounting type: DIN rail EN 60715
Width of extension: 1 module (18 mm)
Crossing of the connected cable (hard): 1 - 25 mm²
Crossing of the connected cable (flexible): 1 - 16 mm²
Operating temperature: -20°C to +50°C
Storage temperature: -40°C to +80°C
Protection level (clem): IP20
Protection level (installations): IP40
Appearance standard: EN 60947-3
Position indicator: I/O (closed/closed)
