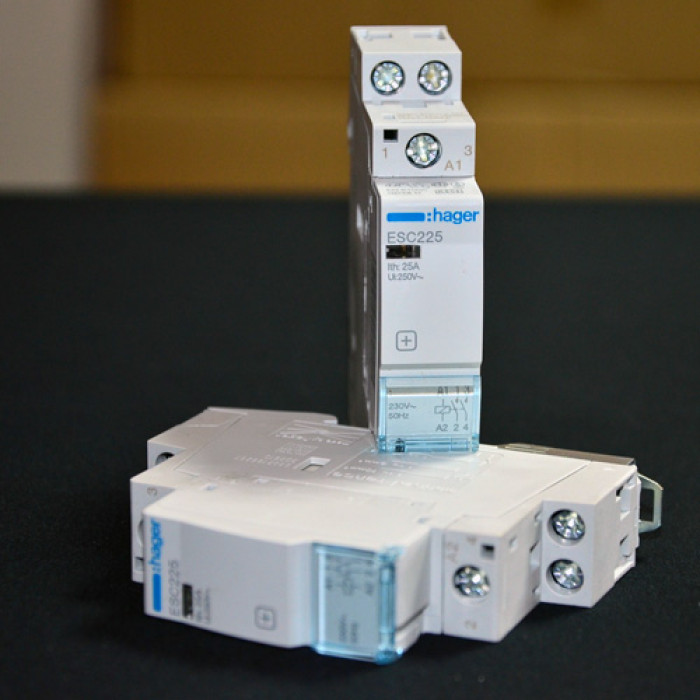

Contactor HAGER ESC225 25A, 2HB, 230V

Description Contactor HAGER ESC225 25A, 2HB, 230V

Virobu type: Modular contactor
Virobnik: HAGER
Model: ESC225
Nominal flow (AC-1): 25 A
Nominal flow (AC-3, 230/400V): 9 A
Nominal operating voltage (Ue): 230/400 V AC
Control coil voltage: 230 V AC
Number of head contacts: 2 НВ
Nominal impulse voltage (Uimp): 4 kV
Nominal insulation voltage (Ui): 440 V
Frequency: 50/60 Hz
Engine power (AC-3, 230V): 2.2 kW
Engine power (AC-3, 400V): 4 kW
Increased tension of the coil (retraction): 18.3 VA
Increased tension of the cat (morning): 2.7 VA
Mechanical wear resistance: 1,000,000 cycles
Electrical wear resistance (AC-1): 100,000 cycles
Electrical wear resistance (AC-3): 100,000 cycles
Number of modules: 2
Mounting method: DIN rail 35 mm
Protection level: IP20
Operating temperature: -10 to +50 °C
Storage temperature: -40 to +70 °C
Maximum cable cut (hard): 10 mm²
Maximum cable cut (wire): 6 mm²
Terminal tightening torque: 1.2 Nm
Compliance with standards: IEC/EN 61095
