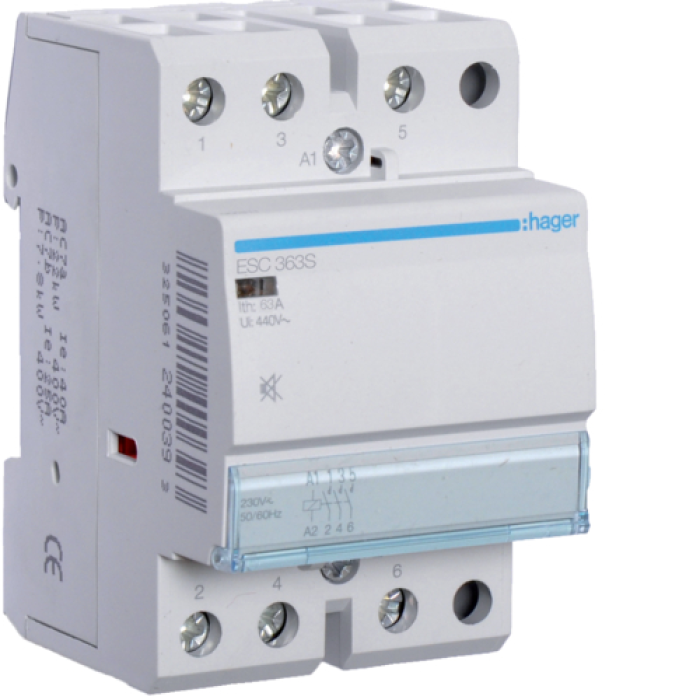

Silent contactor 63A, 3HB, 230V Hager ESC363S

Description Silent contactor 63A, 3HB, 230V Hager ESC363S

Nominal flow (AC-1): 63 A
Nominal flow (AC-7a): 63 A
Nominal flow (AC-7b): 20 A
Nominal voltage of the coil: 230 V AC
Number of contacts: 3 НВ
Nominal operating voltage: 250 V AC
Nominal insulation voltage: 440 V
Nominal impulse voltage: 4 kV
Frequency: 50/60 Hz
Maximum tension (AC-7b, 230 V): 3.5 kW
Increased pressure of the coil (starter): 11 VA
Increased tension of the coil (trimmed): 2.2 VA
Electrical wear resistance: 30,000 cycles
Mechanical wear resistance: 1,000,000 cycles
Operating temperature range: -10...+50 °C
Temperature range: -40...+80 °C
Protection level: IP20
Width: 3 modules
Overcut of conductors (hard): 1.5-25 mm²
Pererez conductors (bend): 1.5-16 mm²
Terminal tightening torque: 2.8 Nm
Noise level: < 20 dB
Standard: EN 61095 / IEC 61095
