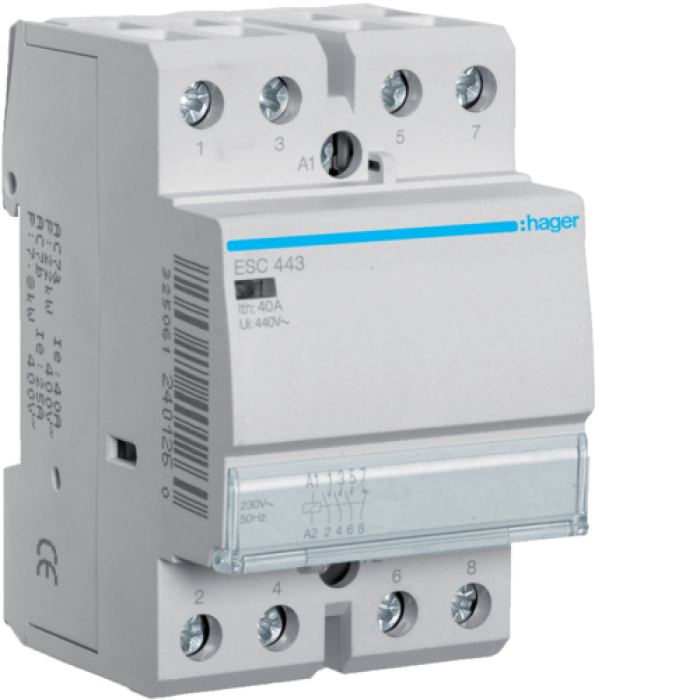

Contactor 40A, 3NV+1NC, 230V Hager ESC443

Description Contactor 40A, 3NV+1NC, 230V Hager ESC443

Type: Modular contactor
Number of poles: 4P
Contact configuration: 3NV + 1NC
Nominal flow (AC-1): 40 A
Nominal flow (AC-3): 18 A
Nominal operating voltage (Ue): 230/400 V AC
Nominal voltage of the coil: 230 V AC
Nominal frequency: 50/60 Hz
Nominal power at AC-3 (230V): 3.7 kW
Nominal voltage at AC-3 (400V): 7.5 kW
Nominal insulation voltage (Ui): 500 V
Nominal impulse voltage (Uimp): 4 kV
Increased coil tension (on): 28 VA
Increased tension of the cat (morning): 4.5 VA
Electrical life (AC-1): 100000 cycles
Electrical life (AC-3): 100,000 cycles
Mechanical life: 1,000,000 cycles
Width: 4 modules
Mounting type: DIN rail
Retin of the connected hard cable: 1.5-25 mm²
Crossing of the connected cable: 1.5-16 mm²
Terminal tightening torque: 2.8 Nm
Protection level (clem): IP20
Protection level (front panel): IP40
Operating temperature range: -10...+50 °C
Temperature range: -25...+70 °C< Compliance with standards: IEC/EN 61095
