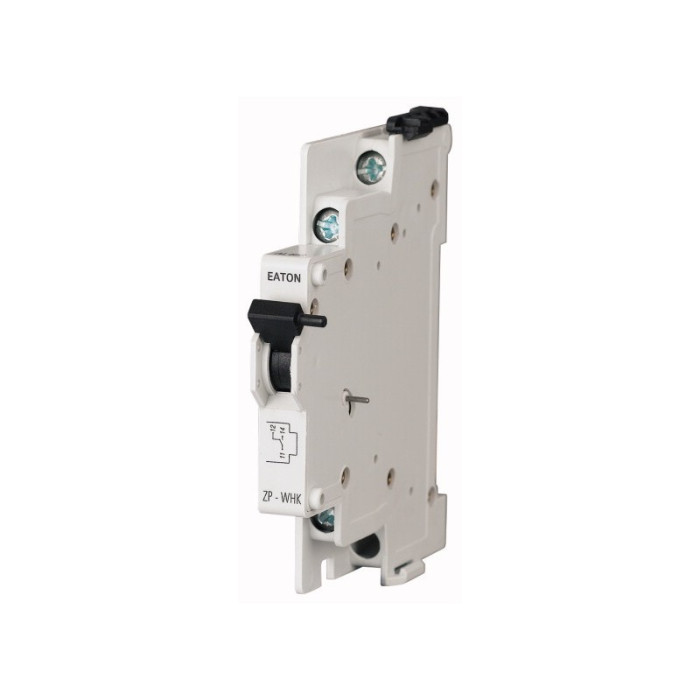

Add. contact ZP-WHK EATON

Description Add. contact ZP-WHK EATON

Contact configuration: 1NO + 1NC
Contact type: Additional
Nominal operating flow (AC-15, 230V): 3 A
Nominal operating flow (AC-15, 400V): 1.5 A
Nominal operating flow (DC-13, 24V): 1 A
Nominal operating flow (DC-13, 125V): 0.2 A
Nominal insulation voltage (Ui): 400 V changeover
Nominal impulse voltage (Uimp): 6 kV
Connection type: Screw terminals
Conductor crossbar (single-core): 0.75 - 2.5 mm²
Conductor strut (high-core with ferrule): 0.75 - 2.5 mm²
Installation type: Bichny
Suspiciousness: Automatic protection against motors of the ZP series (ZP-SV, ZP-S)
Protection level (clem): IP20
Operating temperature range: -25°C to +55°C
Temperature range: -40°C to +80°C
Mechanical life: > 5 x 10^6 cycles
Electrical life (AC-15, 230V, 3A): > 1 x 10^5 cycles
Compliance with standards: IEC/EN 60947-5-1
