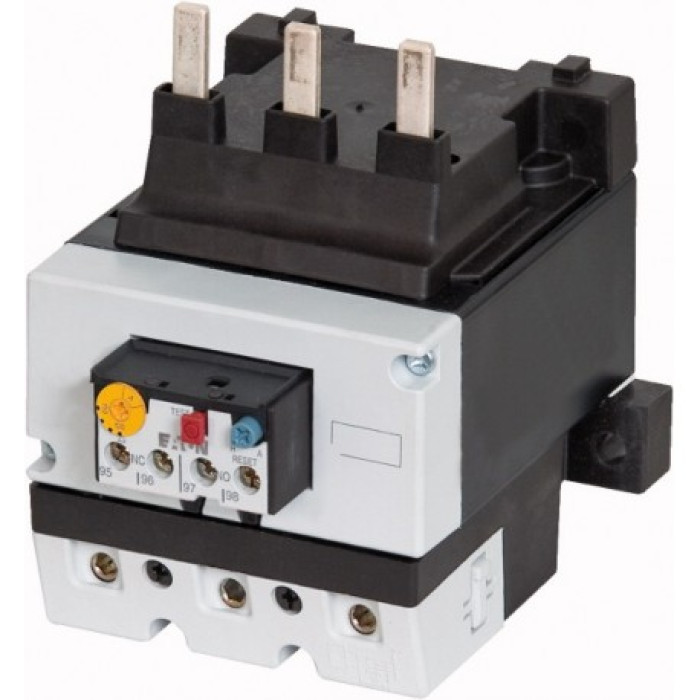

Thermal relay ZB150-100 EATON

Description Thermal relay ZB150-100 EATON

Strum adjustment range: 80 - 100 A
Opening class: 10A
Number of poles: 3
Rated operating voltage Ue: up to 690 V AC
Nominal impulse voltage Uimp: 6 kV
Auxiliary contact configuration: 1 NO + 1 NC
Nominal current of auxiliary contacts Ie (AC-15, 230V): 2.5 A
Nominal voltage of auxiliary contacts Ie (AC-15, 400V): 1.5 A
Rated current of auxiliary contacts Ie (AC-15, 500V): 1 A
Nominal current of auxiliary contacts Ie (AC-15, 690V): 0.5 A
Nominal current of auxiliary contacts Ie (DC-13, 24V): 1.5 A
Nominal current of auxiliary contacts Ie (DC-13, 60V): 0.5 A
Nominal current of auxiliary contacts Ie (DC-13, 110V): 0.25 A
Nominal value of auxiliary contacts Ie (DC-13, 220V): 0.1 A
Drop type: Manual / Automatic (vibir)
Type of protection: Type of revantation, type of phase interruption
Protection level: IP20
Operating temperature range: -25 °C to +55 °C
Temperature range: -40 °C to +70 °C
Maximum retin of the conductors of the head lancet (bend): 50 mm²
Maximum retin of the conductors of the head lancet (hard): 70 mm²
Retin of the conductors of the additional lance: 1.0 - 2.5 mm²
Installation method: Without center to contactor / Okremo (with Z-DIL adapter)
Compliance with standards: IEC/EN 60947-4-1, VDE 0660
Full power at nominal power: 18 W
Vaga: 0.61 kg
Height: 90 mm
Width: 90 mm
Glibina: 104.5 mm
