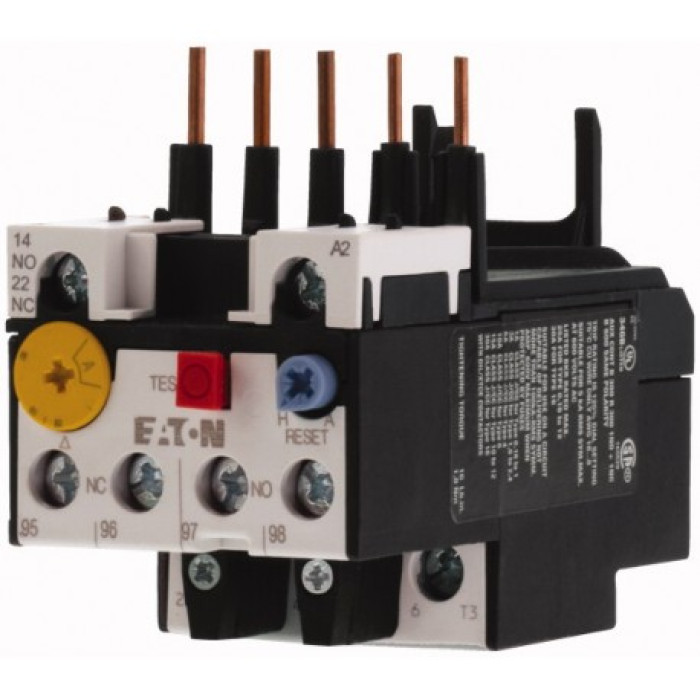

Thermal relay ZB12-12 EATON

Description Thermal relay ZB12-12 EATON

Stream regulation range: 8 - 12 A
Opening class: 10A
Number of poles: 3
Type of thermal element: Bimetallic
Rated operating voltage (Ue): up to 690 V AC
Nominal insulation voltage (Ui): 690 V AC
Nominal impulse voltage (Uimp): 6 kV
Frequency: 40 - 60 Hz
Auxiliary contacts: 1 NC + 1 NO
Nominal working flow of auxiliary contacts (AC-15, 230V): 1.5 A
Nominal operating current of auxiliary contacts (DC-13, 220V): 0.15 A
Ambient temperature range (working): -25 to +55 °C
Ambient temperature range (freezing): -40 to +80 °C
Temperature compensation for excessive core: So
Protection level: IP20
Throw type: Manual/Automatic
Test function: So
Application indicator: So
Installation method: Directly mounted to the contactor / Installed around
Compatibility with EATON contactors of the DILM series: DILM7, DILM9, DILM12, DILM15, DILMP20, DILMP32
Compliance with standards: IEC/EN 60947-4-1
