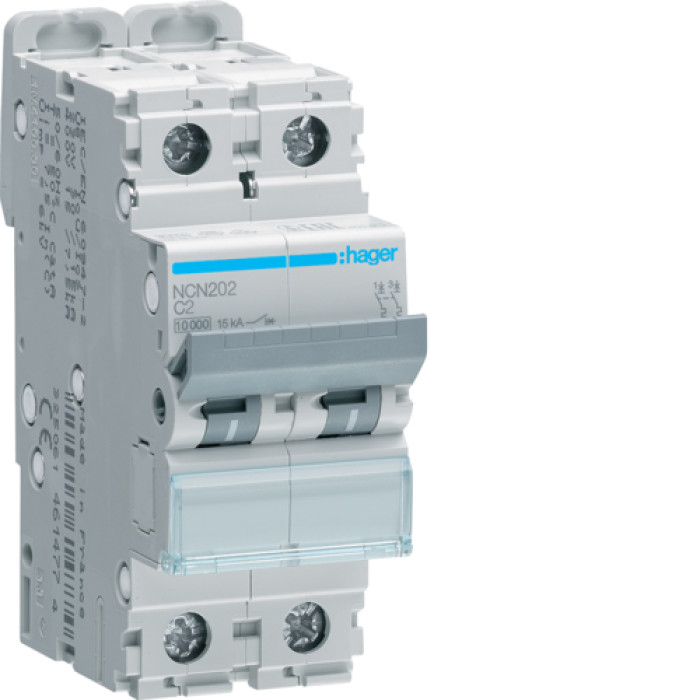

Hager 2P 10kA C-2A 2M Circuit Breaker, NCN202

Description Hager 2P 10kA C-2A 2M Circuit Breaker, NCN202

Number of poles: 2
Nominal power: 2 A
Specification characteristics: C
Nominal voltage: 10 kA
Nominal operating voltage: 230/400 V AC
Nominal insulation voltage: 500 V
Nominal pulse vistimulation voltage: 4 kV
Frequency: 50/60 Hz
Energy class: 3
Electrical durability: 10000 cycles
Mechanical durability: 20,000 cycles
Operating temperature range: -25 to +70 °C
Saving temperature range: -40 to +80 °C
Mounting method: DIN rail
Maximum overcut of the connected hard conductor: 35 mm²
Maximum overcut of the connected hard conductor: 25 mm²
Width: 2 modules
Protection stage (housing): IP20
Protection stage (installations): IP40
Terminal tightening torque: 2.8 Nm
Terminal type: Tunnel
Compliance with standard: EN 60898-1
