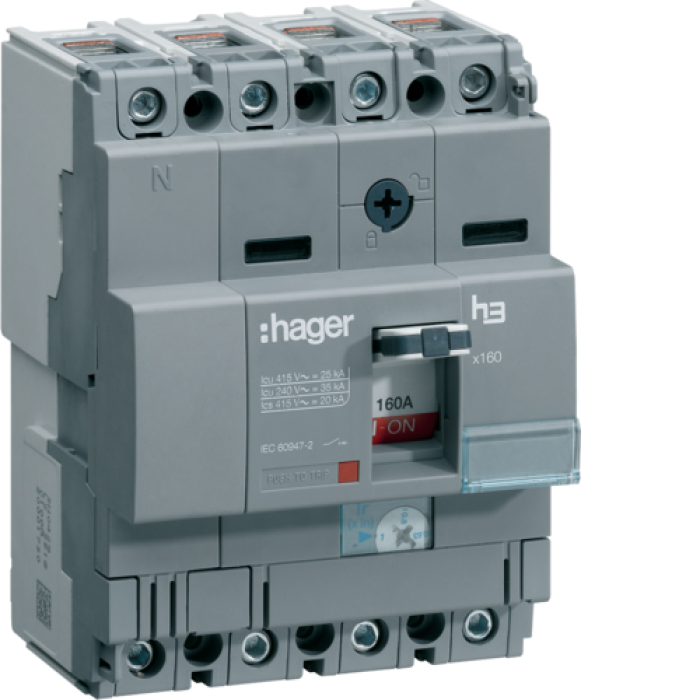

Hager circuit breaker x160. In=160A. 4 points. 40kA. Trigger/Mfix., HNA161H

Description Hager circuit breaker x160. In=160A. 4 points. 40kA. Trigger/Mfix., HNA161H

Type of device: Automatic vibration pump with cast housing
Virobnik: Hager
Series: h3+ (x160)
Article: HNA161H
Number of poles: 4P
Nominal flow (In): 160 A
Nominal operating voltage (Ue): 230/400 V AC
Nominal insulation voltage (Ui): 750 V
Nominal impulse voltage (Uimp): 8 kV
Nominal limiting voltage (Icu) at 400 V AC: 40 KA
Rated operating voltage (Ics) at 400 V AC: 40 kA
Frequency: 50/60 Hz
Type of sputter: Thermomagnetic
Regulation of thermal expansion agent: Fixed
Thermal power supply setting (Ir): 160 A
Regulation of magnetic dispenser: Fixed
Magnetic switch setting (Im): 1600 A
Category: A
Installation type: Stationary (on the mounting panel)
Connections: Front terminals
Maximum cable cut (wire): 95 mm²
Maximum cable cut (hard): 120 mm²
Mechanical wear resistance: 20,000 cycles
Electrical wear resistance: 8000 cycles
Protection level (IP) of the front panel: IP40 (with terminal cover)
Protection level (IP) housing: IP20
Operating temperature range: -25 to +70 °C
Saving temperature range: -35 to +80 °C
Compliance with standards: IEC/EN 60947-2
Height: 165 mm
Width: 105 mm
Glibin: 68 mm (behind the mounting panel)
Vaga: 1.8 kg
