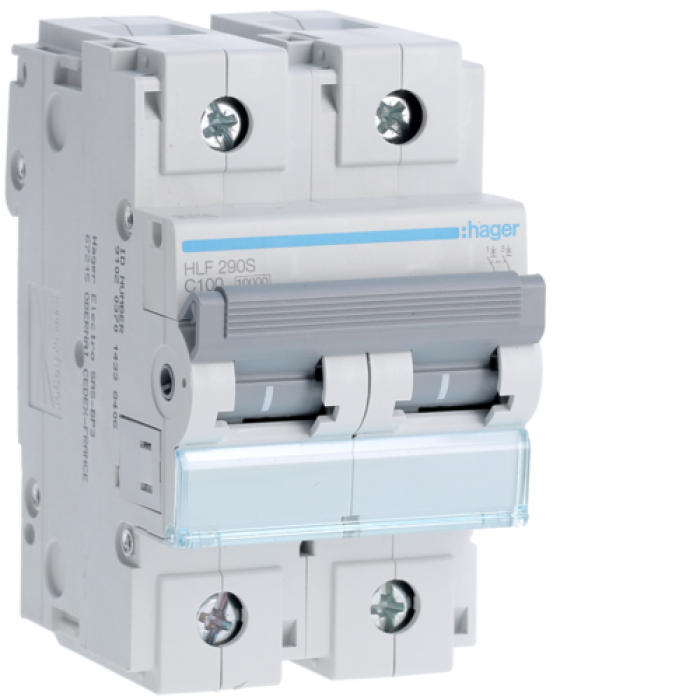

Hager 2P 10kA C-100A 3M Circuit Breaker, HLF290S

Description Hager 2P 10kA C-100A 3M Circuit Breaker, HLF290S

Type of vibrator: Automatic vimikach
Vybnik: Hager
Model/Article: HLF290S
Number of poles: 2P
Nominal flow: 100 A
Specification characteristics: C
Nominal vimikach Nominal operating voltage (Icn): 10 kA
Nominal operating voltage (Ue): 230/400 V AC
Nominal impulse voltage (Uimp): 4 kV
Frequency: 50/60 Hz
Module width: 3 modules
Mounting type: DIN rail
Step protection (housing): IP20
Protection stage (terminal): IP20
Energy class: 3
Electrical wear resistance: 4000 cycles
Mechanical wear resistance: 20000 cycles
Pertin Connection of conductors (hard): 1.5 - 50 mm²
Strut Connection of conductors (flex): 1.5 - 35 mm²
Terminal tightening torque: 3.5 Nm
Operating temperature: -25...+70 °C
Saving temperature: -25...+80 °C
Compliance with standards: EN 60898-1
Contact position indication: Yes
