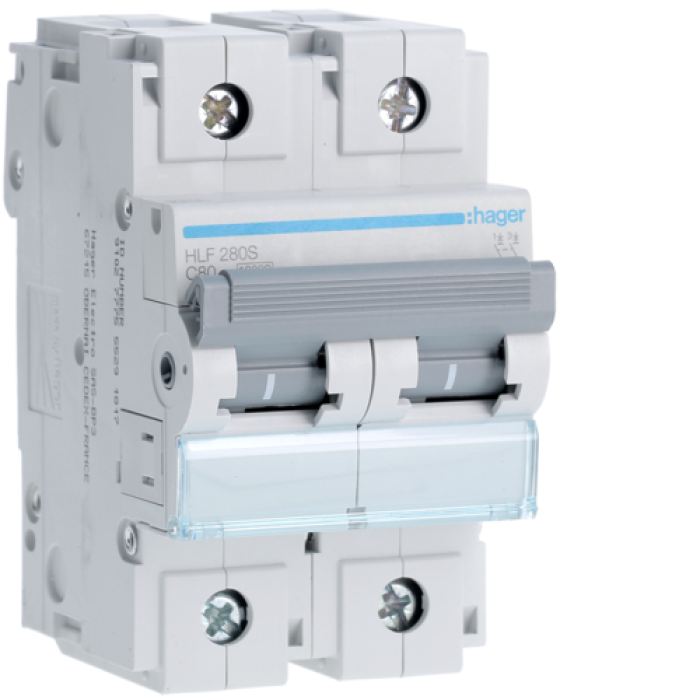

Hager 2P 10kA C-80A 3M Circuit Breaker, HLF280S

Description Hager 2P 10kA C-80A 3M Circuit Breaker, HLF280S

Nominal flow: 80 A
Number of poles: 2P
Characteristics of vimknennya: C
Nominal value that includes: 10 kA
Nominal operating voltage: 230/400 V AC
Nominal insulation voltage: 500 V
Nominal impulse voltage: 4 kV
Nominal frequency: 50/60 Hz
Wiring type: Heat-magnetic
Electrical wear resistance: 4000 cycles
Mechanical wear resistance: 10,000 cycles
Protection level (clem): IP20
Protection level (in housing): IP40
Maximum span of hard cable: 50 mm²
Maximum cable span: 35 mm²
Terminal tightening torque: 3.5 Nm
Operating temperature range: -25 to +70 °C
Temperature range: -40 to +80 °C
Mounting method: On DIN rail
Width (in modules): 3 modules
Width: 52.5 mm
Height: 83 mm
Installation depth: 70 mm
Energy class: 3
Standard: EN 60898-1
Overvoltage category: III
