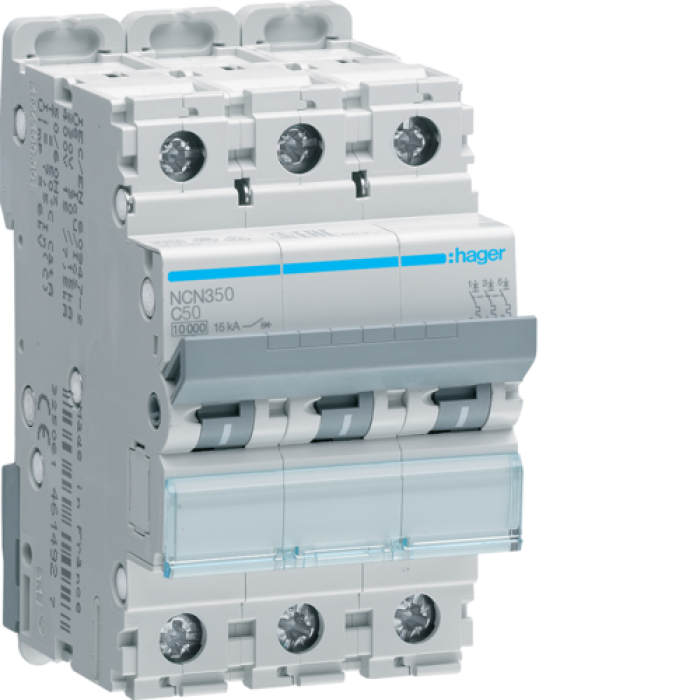

Hager 3P 10kA C-50A 3M Circuit Breaker, NCN350

Description Hager 3P 10kA C-50A 3M Circuit Breaker, NCN350

Virobnik: Hager
Order code: NCN350
Device type: Automatic vimikach
Number of poles: 3 poles
Nominal flow: 50 A
Design characteristic (curve): C
Nominal voltage: 10 kA
Nominal operating voltage: 230/400 V AC
Nominal insulating voltage: 500 V
Nominal impulse voltage: 4 kV
Frequency: 50/60 Hz
Width in modules: 3 modules
Mounting type: DIN rail
Type of sputter: Thermomagnetic
Protection level (housing): IP20
Protection level (clem): IP20
Overcut range of hard conductor: 1-25 mm²
Overcut range of wire conductor: 1-16 mm²
Terminal tightening torque: 2.8 Nm
Electrical wear resistance (resource): 10000 cycles
Mechanical wear resistance (resource): 20,000 cycles
Operating temperature range: -25°C to +70°C
Saving temperature range: -40°C to +80°C
Jet exchange class: 3
Compliance with standards: EN 60898-1
Indication of contact position: Yes
Vaga: 0.375 kg
