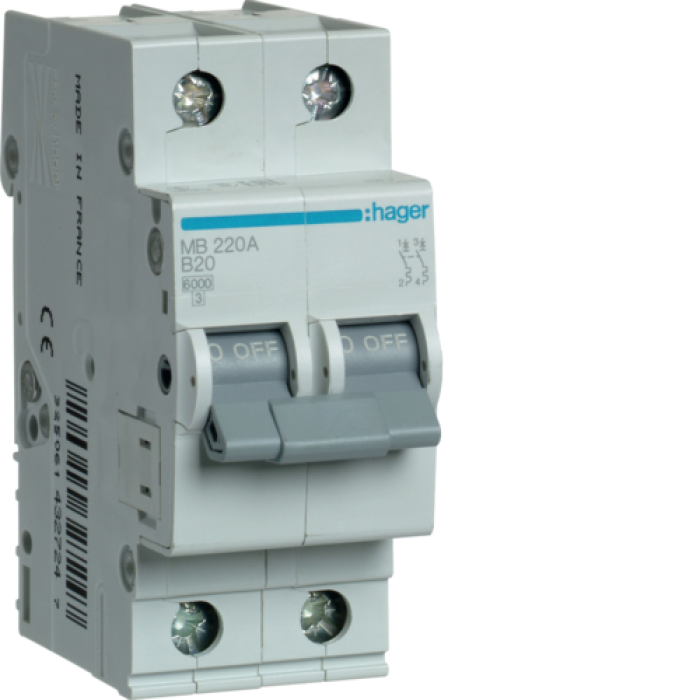

Hager 2P 6kA B-20A 2M Circuit Breaker

Description Hager 2P 6kA B-20A 2M Circuit Breaker

Type of vibrator: Automatic vibration generator
Virobnik: Hager
Number of poles: 2P
Nominal flow: 20 A
Specification characteristics: B
Nominal voltage: 6 kA
Quickness modules: 2
Nominal operating voltage: 230/400 V AC
Power type: AC
Nominal frequency: 50/60 Hz
Nominal insulation voltage: 500 V
Nominal Pulse voltage: 4 kV
Energy transfer class: 3
Protection level (terminal): IP20
Maximum conductor strut (hard): 1-25 mm²
Maximum conductor strut (hard): 1-16 mm²
Operating temperature range: from -25°C to +70°C
Saving temperature range: from -40°C to +80°C
Durability standard: EN 60898-1
Electrical life: 10,000 cycles
Mechanical life: 20,000 cycle
Installation: On DIN rail 35 mm
Terminal tightening torque: 2.8 Nm
Tightness per pole (at rated power): 4.1 W
Overall width: 35 mm
Overall height: 83 mm
Overall depth: 70 mm
