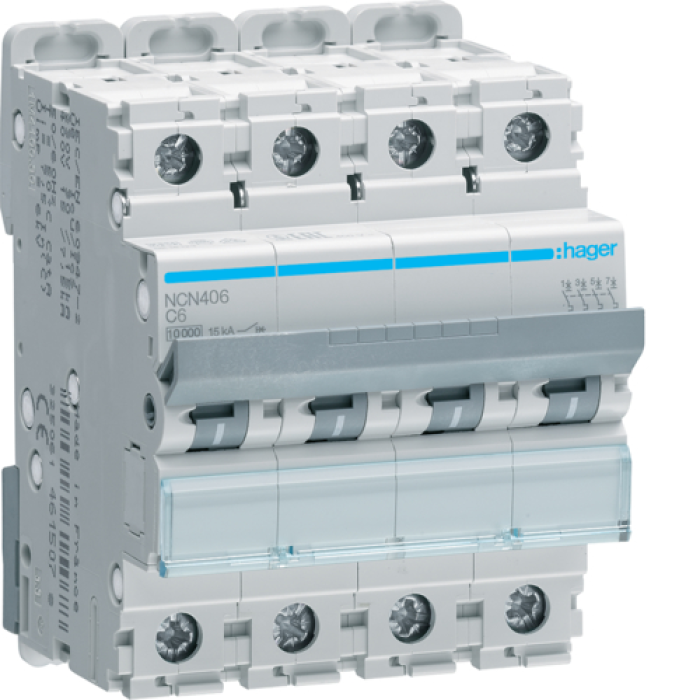

Hager 4P 10kA C-6A 4M Circuit Breaker, NCN406

Description Hager 4P 10kA C-6A 4M Circuit Breaker, NCN406

Device type: Automatic circuit breaker
Pole strength: 4P
Nominal flow: 6 A
Specification characteristics: C
Nominal switching capacity: 10 kA
Module strength: 4
Operating voltage (change flow): 230/400 V AC
Nominal frequency: 50/60 Hz
Mounting type: DIN rail
Protection stage (housing): IP40
Protection stage (terminal): IP20
Maximum crossbar Connected cable (hard): 25 mm²
Maximum span of the connected cable (flexible): 16 mm²
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Operating temperature range: -25 to +60 °C
Saving temperature: -40 to +80 °C
Energy transfer class: 3
Nominal impulse vistimulation voltage (Uimp): 4 kV
Nominal insulation voltage (Ui): 500 V
Vidpovdnist standards: EN 60898-1
Terminal type: Tunnel terminals
Terminal tightening torque: 2.8 Nm
Light indicator visibility: None
