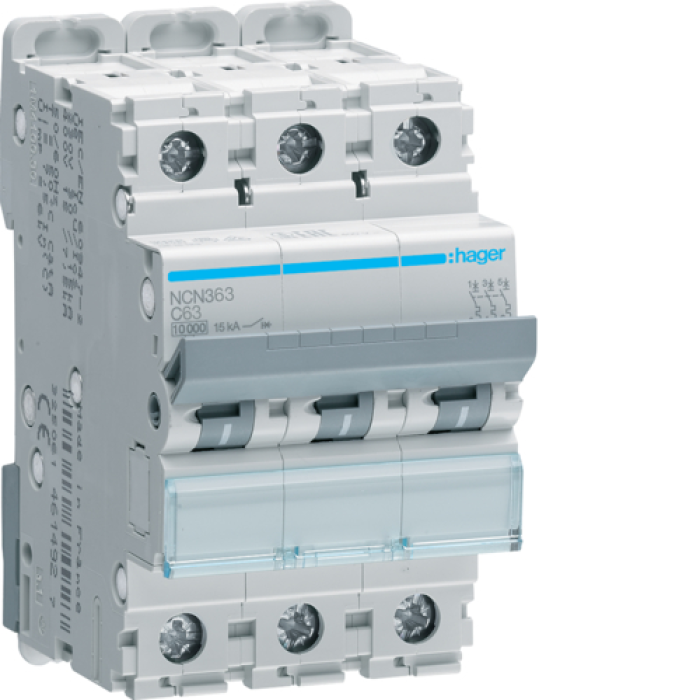

Hager 3P 10kA C-63A 3M Circuit Breaker, NCN363

Description Hager 3P 10kA C-63A 3M Circuit Breaker, NCN363

Article: NCN363
Device type: Automatic vimikach
Virobnik: Hager
Number of poles: 3P
Nominal flow: 63 A
Nominal voltage: 230/400 V AC
Rated switching capacity (Icn): 10 kA
Application characteristics: C
Frequency: 50/60 Hz
Energy exchange class: 3
Electrical wear resistance: 4000 cycles
Mechanical wear resistance: 20000 cycles
Protection level (clem): IP20
Protection level (at the housing): IP40
Mounting method: DIN rail
Width: 3 modules
Extension width: 53.4 mm
Extension height: 83 mm
Installation depth (from DIN rail): 70 mm
Operating temperature range: -25°C to +60°C
Saving temperature range: -40°C to +70°C
Crossbar connects conductors (hard): 1-35 mm²
Peretin connect conductors (bend): 1-25 mm²
Terminal tightening torque: 2.8 Nm
Overvoltage category: III
Compliance with standards: EN 60898-1
Vaga: 0.36 kg
