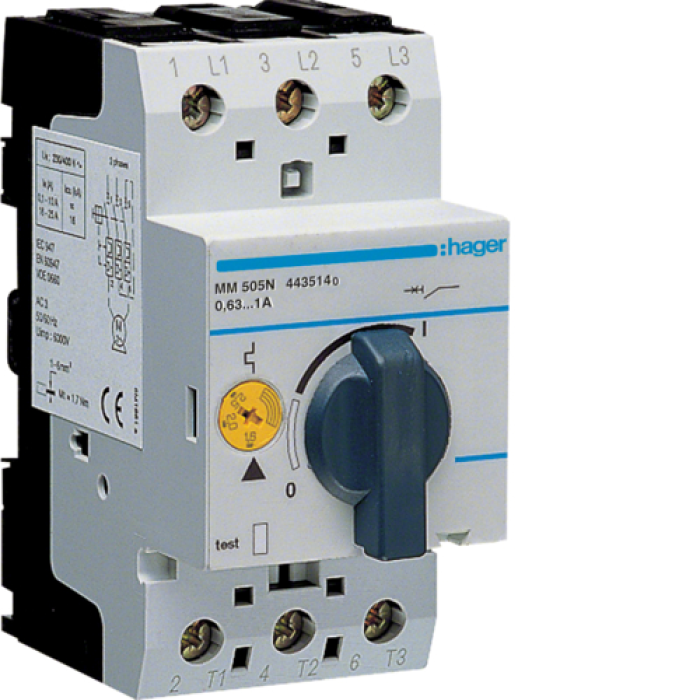

Hager circuit breaker, for motor protection, Isetting=0.6-1.0A, 2.5M, MM505N

Description Hager circuit breaker, for motor protection, Isetting=0.6-1.0A, 2.5M, MM505N

Model: MM505N
Product type: Automatic vimikach for engine protection
Virobnik: Hager
Series: MMS
Number of poles: 3P
Sputter type: Thermomagnetic
Thermal sprayer setting range: 0.6-1.0 A
Application range of magnetic sprayer: 13 A
Rated operating voltage (Ue) at AC: 230 V
Nominal operating voltage (Ue) at AC: 400 V
Nominal operating voltage (Ue) at AC: 440 B
Nominal operating voltage (Ue) at AC: 500 V
Nominal operating voltage (Ue) at AC: 690 V
Nominal insulation voltage (Ui): 690 V
Nominal impulse voltage (Uimp): 6 kV
Rated short-circuit current (Icu) at 230 V AC: 100 kA
Rated limit value that switches on during short circuit (Icu) at 400 V AC: 100 kA
Rated short-circuit current (Icu) at 440 V AC: 100 kA
Rated short circuit current (Icu) at 500 V AC: 10 kA
Rated short-circuit current (Icu) at 690 V AC: 6 kA
Rated operational capacity, which switches on, during short circuit (Ics) at 230 V AC: 100 KA
Rated short-circuit operating capacity (Ics) at 400 V AC: 100 kA
Rated short-circuit operating capacity (Ics) at 440 V AC: 100 kA
Rated short-circuit operating capacity (Ics) at 500 V AC: 10 kA
Rated operational capacity, which switches on, at short circuit (Ics) at 690 V AC: 6 KA
Category: A
Maximum overcut of the connected wire conductor: 4 mm²
Maximum overcut of the connected hard conductor: 6 mm²
Terminal tightening torque: 1.2 Nm
Width: 45 mm
Height: 97 mm
Glibina: 89 mm
Width in modular units: 2.5 M
Mounting method: On DIN rail
Operating temperature: -20 to +60 °C
Storage temperature: -40 to +80 °C
Steps zakhistu (housing): IP00
Protection level (clem): IP20
Mechanical wear resistance: 100,000 cycles
Electrical wear resistance: 100,000 cycles
Compliance with standard: IEC/EN 60947-2
Compliance with standard: IEC/EN 60947-4-1
