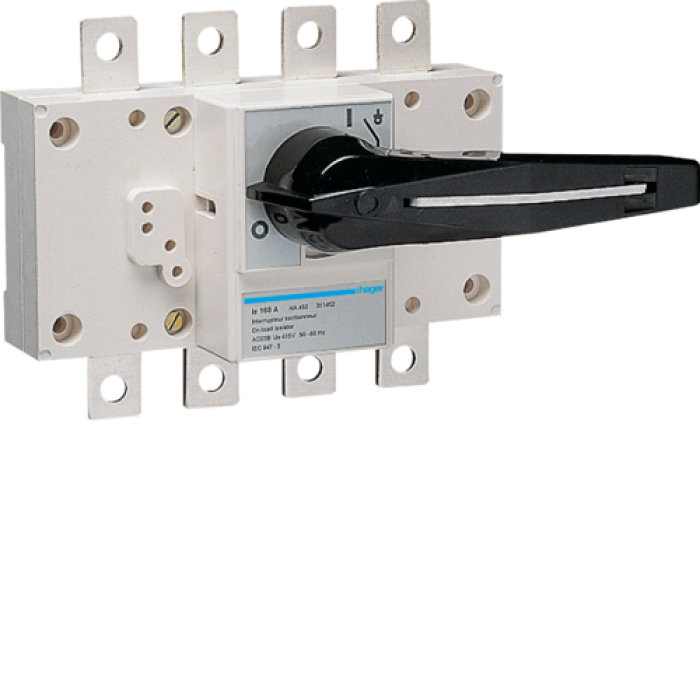

Hager load switch, enclosure up to 95 mm2, 4 pole 160 A, HA452

Description Hager load switch, enclosure up to 95 mm2, 4 pole 160 A, HA452

Type of switch: Vimikach navantazhenya
Virobnik: Hager
Model: HA452
Nominal flow (In): 160 A
Number of poles: 4
Maximum cross-section of conductor connection (hard): 95 mm²
Maximum conductor connection cross-section (wire): 70 mm²
Nominal operating voltage (Ue): 230/400 V AC
Nominal insulation voltage (Ui): 800 V
Nominal Impulse voltage (Uimp): 8 kV
Duty category: AC-22A
Mechanical wear resistance: 20000 cycles
Electrical wear resistance: 1500 cycles
Nominal short-circuit drain (Icc): 20 kA (per wash the protection with gG 160A)
Nominal current of short-hour vibration (Icw): 3 kA (1 s)
Mounting method: On DIN rail / On mounting plate
Protection stage (terminal): IP20
Protection stage (front panel): IP40
Operating range temperature: from -25 to +55 °C
Temperature range: from -40 to +70 °C
Terminal tightening torque: 12 Nm
Compliance with standards: IEC/EN 60947-3
Housing type: Housing
Dimensions Dimensions (WxHxD): 105 x 90 x 70 mm
Weight: 0.9 kg
Connection type: Screw terminals
Position indication: Closed/Closed (I/O)
Connection diagram: 4-pole
