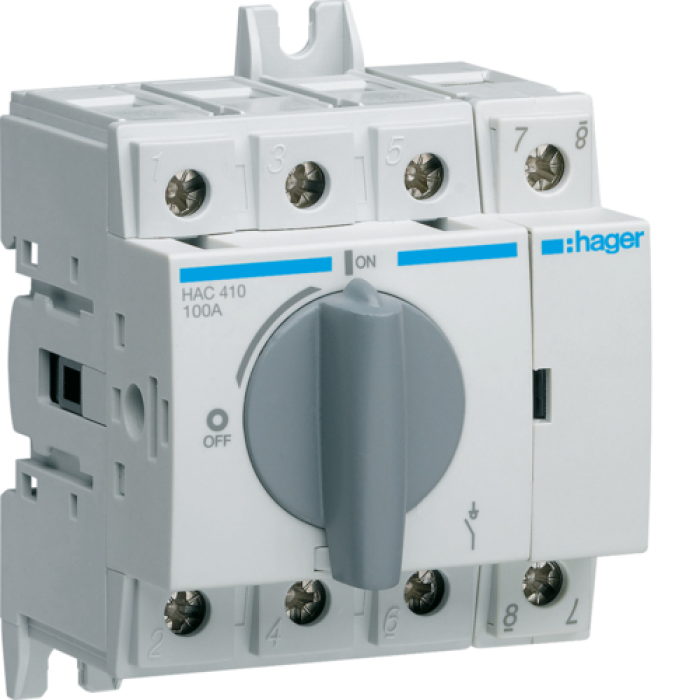

Hager load switch, modular up to 35 mm2, 4 pole 100 A, HAC410

Description Hager load switch, modular up to 35 mm2, 4 pole 100 A, HAC410

Type of extension: Vimikach navantazhennya
Model: HAC410
Virobnik: Hager
Number of poles: 4P
Nominal flow: 100 A
Nominal operating voltage of the exchanger: 230/400 V
Nominal insulation voltage: 500 V
Nominal impulse voltage: 6 kV
Frequency: 50/60 Hz
Strum type: AC
Drying category: AC-22A
Nominal short-circuit current: 10 kA
Maximum span of hard cable: 35 mm²
Maximum cable span: 25 mm²
Terminal tightening torque: 2.8 Nm
Mounting type: Modular, DIN rail
Number of modules: 4
Protection level: IP20
Minimum operating temperature: -20 °C
Maximum operating temperature: 50 °C
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 30,000 cycles
