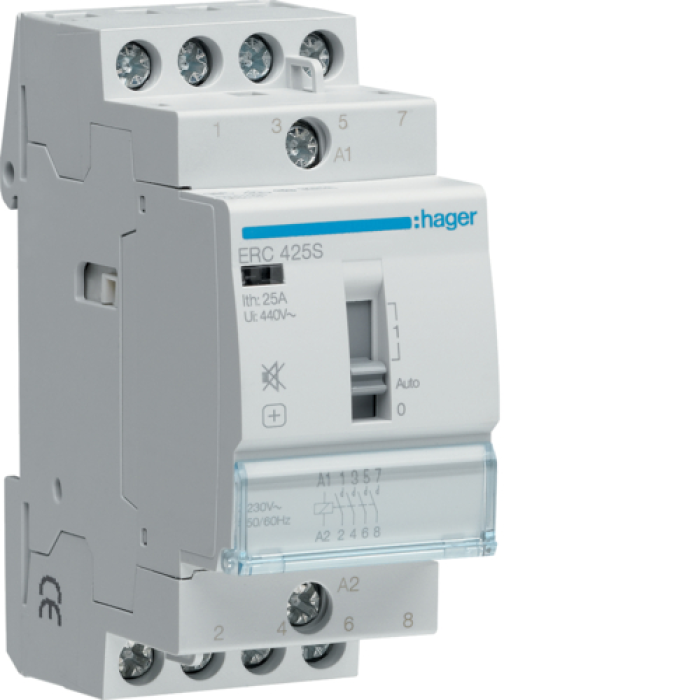

Hager silent contactor, with manual control, 25A, 4HB, 230V ERC425S

Description Hager silent contactor, with manual control, 25A, 4HB, 230V ERC425S

Model: ERC425S
Virobnik: Hager
Virobu type: Modular contactor
Number of poles: 4
Contact type: Normally open (NV)
Nominal operating flow (AC-1): 25 A
Nominal voltage of the coil: 230 V AC
Noise level: Low (silent)
The evidence of manual carving: So
Stacking category: AC-1
Nominal operating voltage (Ue): 230/400 V AC
Nominal insulation voltage (Ui): 500 V
Nominal impulse voltage (Uimp): 4 kV
Nominal frequency: 50/60 Hz
Maximum switching power (AC-1, 230V): 5.75 kW
Maximum switching power (AC-1, 400V): 9.2 kW
Electrical durability (AC-1): 100,000 cycles
Mechanical durability: 1,000,000 cycles
Current frequency: 50/60 Hz
Pushing coil consumption (with immersion): 1.8 VA
Tension of the sleeping cat (when morning): 1.8 VA
Mounting method: DIN rail 35 mm
Number of modules (17.5 mm): 2
Protection level (housing): IP20
Protection level (after installation in a panel): IP40
Operating temperature range: -10...+50 °C
Temperature range: -40...+70 °C
Maximum overcut of the connected conductor (hard): 16 mm²
Maximum overcut of the connected conductor (bend): 10 mm²
Terminal tightening torque: 1.2 Nm
Terminal type: Gvintovi
