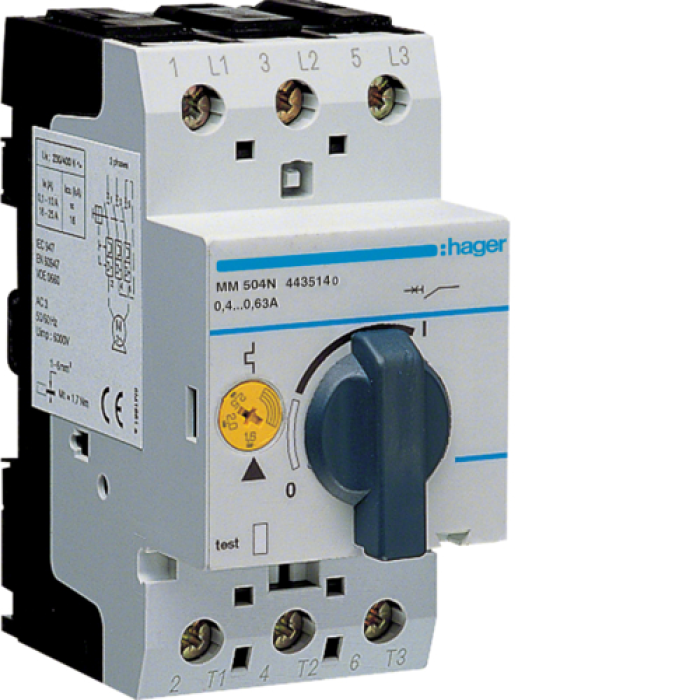

Hager circuit breaker, for motor protection, Isetting=0.4-0.6A, 2.5M, MM504N

Description Hager circuit breaker, for motor protection, Isetting=0.4-0.6A, 2.5M, MM504N

Type of device: Automatic switch for engine protection
Model: MM504N
Series: MMS
Vybnik: Hager
Number of poles: 3P
Nominal operating flow (In): 0.6 A
Regulation range thermal sprayer: 0.4 - 0.6 A
Protection type: Thermal, electromagnetic
Electromagnetic switch setting: 13 x In (7.8 A)
Discharger class: Class 10
Nominal operating voltage (Ue): 230/400 V AC
Maximum operating voltage: 690 V AC
Nominal insulation voltage (Ui): 690 V
Nominal impulse withstand voltage (Uimp): 6 kV
Nominal limit switching voltage (Icu) at 400V AC: 100 kA
Nominal operating switching capacity (Ics): 100 kA
Frequency: 50/60 Hz
Mounting type: DIN rail
Number of DIN modules: 2.5
Height: 93 mm
Width: 45 mm
Depth: 79.5 mm
Wague: 0.283 kg
Over-cut of the connecting conductor (hard): 1 - 10 mm²
Over-cut of the connected conductor (flexible): 1 - 6 mm²
Terminal tightening torque: 2.5 Nm
Protection stage (terminal): IP20
Protection stage (housing): IP40
Operating temperature range: -20 to +60 °C
Saving temperature range: -40 to +70 °C
Electrical wear resistance: 100,000 cycles
Mechanical wear resistance: 100,000 cycles
Safety standard: EN 60947-2
Safety standard: EN 60947-4-1
