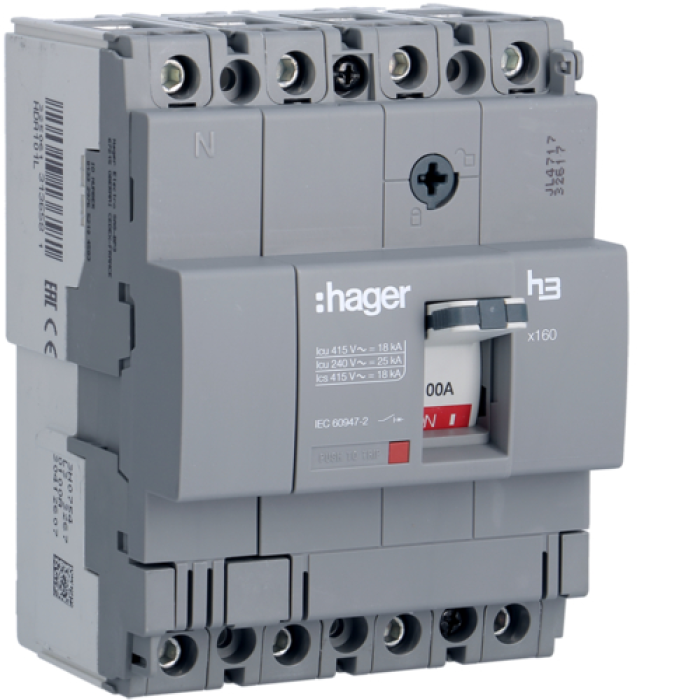

Hager circuit breaker x160. In=100A. 4 points. 18kA. Fixed/multi-fixed., HDA101L

Description Hager circuit breaker x160. In=100A. 4 points. 18kA. Fixed/multi-fixed., HDA101L

Device type: Automatic transfer pump
Model: HDA101L
Series: x160
Virobnik: Hager
Nominal flow (In): 100 A
Number of poles: 4
Rated limiting voltage (Icu) at 400 V AC: 18 kA
Type of sputter: Thermomagnetic
Adjusting the thermal outlet: Fixed
Adjustment of magnetic dispenser: Fixed
Nominal operating voltage (Ue): 400 V AC
Nominal insulation voltage (Ui): 690 V
Nominal impulse voltage (Uimp): 6 kV
Nominal operating frequency: 50/60 Hz
Category: A
Protection level (IP) with front panel: IP40
Protection level (IP) for terminals: IP20
Mechanical wear resistance: 10,000 cycles
Electrical wear resistance: 5000 cycles
Operating temperature range: -25°C to +70°C
Saving temperature range: -40°C to +85°C
Installation type: Panel
Compliance with standards: IEC/EN 60947-2
Type of conductor connection: Screw terminals
