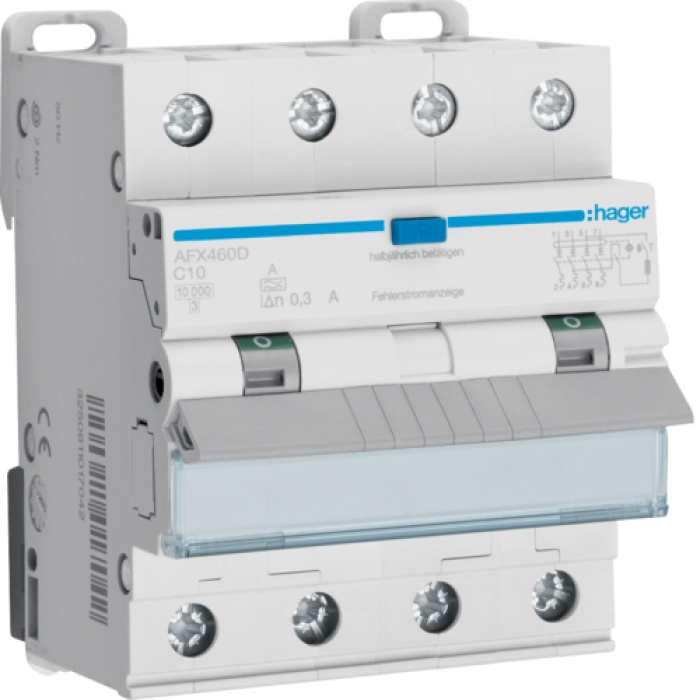

Residual current circuit breaker 4P 10kA C-10A 300mA, Hager AFX460D

Description Residual current circuit breaker 4P 10kA C-10A 300mA, Hager AFX460D

Model: AFX460D
Virobnik: Hager
Device type: Differential automatic changer (AVDT)
Number of poles: 4P
Nominal flow (In): 10 A
Nominal differential flow current (IΔn): 300 mA
Type of differential protection: Type A
Characteristics of the application for the strum: Kriva C
Nominal voltage (Icn): 10 kA
Nominal operating voltage (Ue): 230/400 V AC
Nominal voltage Isolation (Ui): 500 V
Nominal impulse voltage (Uimp): 4 kV
Frequency: 50/60 Hz
Terminal type: Gvintovi
Crossing of the connected cable (hard): 1 - 25 mm²
Crossing of the connected cable (flexible): 1 - 16 mm²
Terminal tightening torque: 2.8 Nm
Protection level (clem): IP20
Protection level (housing after installation): IP40
Width: 4 modules
Standard: IEC/EN 61009-1
Wear resistance (electrical): 10,000 cycles
Wear resistance (mechanical): 20,000 cycles
Operating temperature: -25 to +40 °C
Storage temperature: -25 to +70 °C
Test button presence: Yes
Indication of contact position: Yes
Indication of application for differential flow: Yes
Energy class: 3
