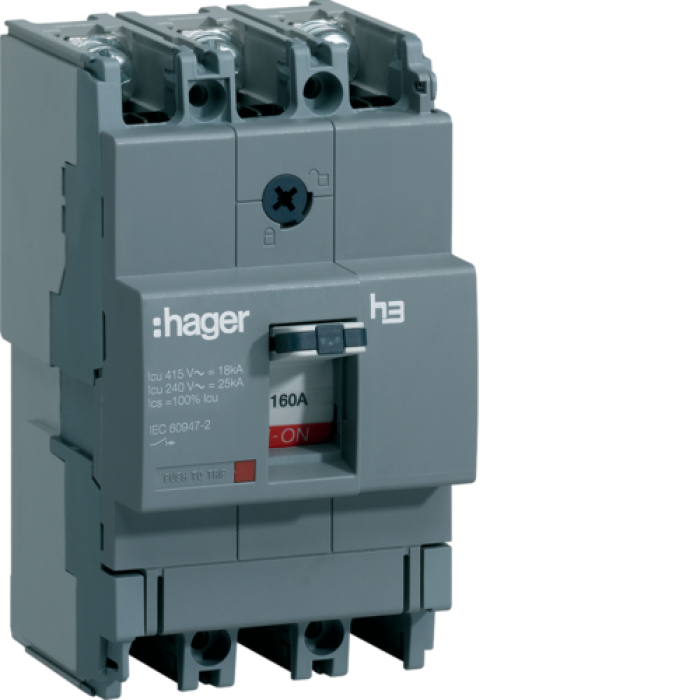

HDA160L, In=160A, 3p, 18kA, x160 Hager circuit breaker

Description HDA160L, In=160A, 3p, 18kA, x160 Hager circuit breaker

Type of automatic vimikach: Molded case
Nominal flow (In): 160 A
Number of poles: 3
Nominal limiting connection capacity (Icu) at 400V: 18 kA
Rated operational connection capacity (Ics) at 400V: 18 kA
Nominal operating voltage (Ue): 400 V AC
Nominal insulation voltage (Ui): 750 V
Nominal impulse voltage (Uimp): 8 kV
Frame size: 160 A
Sputter type: Thermomagnetic
Thermal control regulation (Ir): 128 - 160 A
Regulation of electromagnetic protection (Ii): 800 - 1600 A
Category: A
Mechanical life: 20,000 cycles
Electrical life at 400V: 6000 cycles
Crossing of the connected cable: 2.5 - 95 mm²
Attachment type: Screw terminals
Installation: On the mounting panel
Operating temperature: -25 ... +70 °C
Storage temperature: -40 ... +70 °C
Protection level: IP20
Standard: IEC 60947-2
