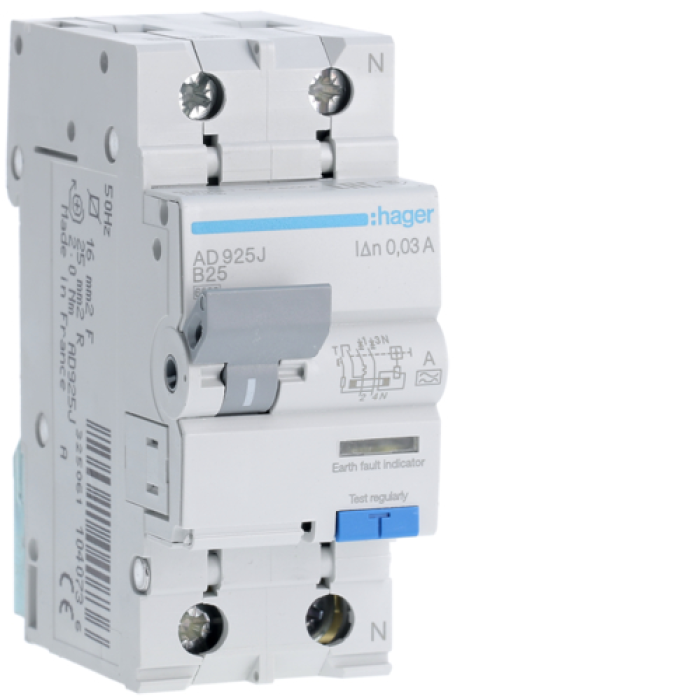

Residual current circuit breaker ADA925D 1P+N 6kA B-25A 30mA Hager

Description Residual current circuit breaker ADA925D 1P+N 6kA B-25A 30mA Hager

Device type: Differential automatic vimicac
Series/Model: ADA925D
Number of poles: 1P+N
Number of stolen poles: 1
Nominal flow (In): 25 A
Connection characteristic: B
Nominal differential flow (IΔn): 30 mA
Nominal switching capacity (Icn): 6 kA
Type of differential strum: A
Rated operating voltage (Ue): 230 V AC
Nominal frequency: 50/60 Hz
Energy class: 3
Protection level (clem): IP20
Protection level (front panel): IP40
Mounting: DIN rail
Width in modules: 2
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Operating temperature range: -25 to +40 °C
Retin conductors (hard): up to 25 mm²
Retin conductors (bend): up to 16 mm²
Voltage Isolation (Ui): 500 V
Impulse voltage (Uimp): 4 kV
