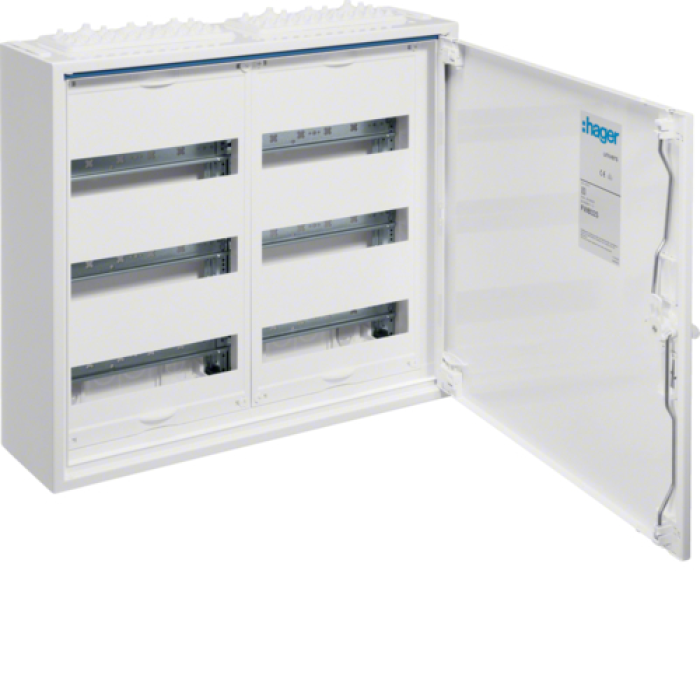

Shield Univers IP44/II 500x550x161mm 72mod.(2x36)

Description Shield Univers IP44/II 500x550x161mm 72mod.(2x36)

Protection class IP: IP44
Electrical safety class: II
Installation type: Insert
Height: 500 mm
Width: 550 mm
Depth: 161 mm
Number of modules: 72
Number of rows: 2
Number of modules per row: 36
Case material: Sheet steel
Door material: Sheet steel
Case color: White (RAL 9010)
Door color: White (RAL 9010)
Door type: Suitable
Nominal operating voltage: 125 A
Nominal operating voltage: 400 V alternating current
Maximum operating voltage: 500 V
Frequency: 50/60 Hz
Impact rating: IK07
Operating temperature range: -25 to +40 °C
Compliance with standard: EN 61439-3
PE/N terminals: Included
