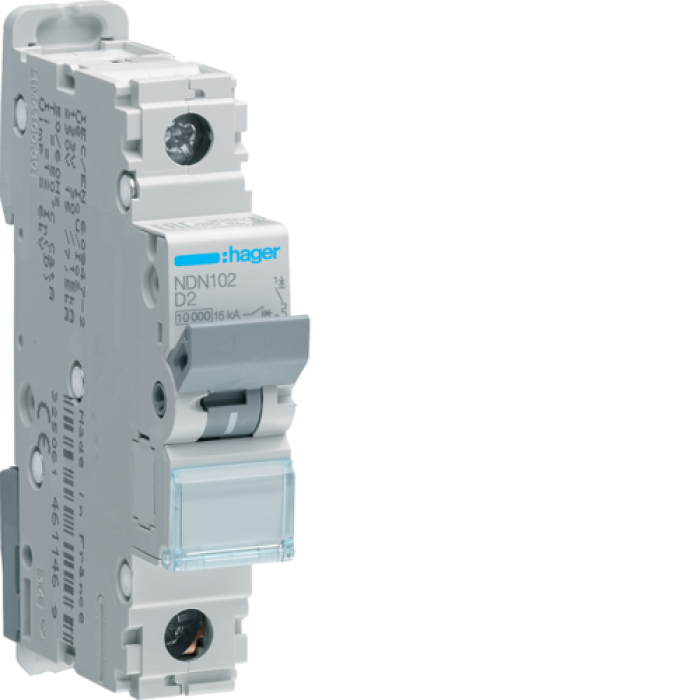

Hager 1P 10kA D-2A 1M Circuit Breaker, NDN102

Description Hager 1P 10kA D-2A 1M Circuit Breaker, NDN102

Device type: Automatic circuit breaker
Number of poles: 1P
Nominal current (In): 2 A
Specification characteristics: D
Nominal voltage (Icn): 10 kA
Nominal operating voltage (Ue): 230 V AC
Nominal insulation voltage (Ui): 500 V
Nominal impulse vistimulation voltage (Uimp): 4 kV
Frequency: 50/60 Hz
Plume exchange class: 3
Electrical wear resistance: 4000 cycles
Mechanical wear resistance: 20000 cycles
Operating temperature range: -25 to +70 °C
Saving temperature range: -40 to +80 °C
Case protection level: IP40
Squeeze protection level: IP20
Maximum overcut of the connected wire conductor: 16 mm²
Maximum overcut of the connected hard conductor: 25 mm²
Mounting type: DIN rail
Width in modules: 1
Zaiman width: 18 mm
Height: 83 mm
Depth: 70 mm
Compliance with standards: EN 60898-1, IEC 60898-1
Terminal tightening torque: 2.8 Nm
Electromagnetic application range spray: 10-20 In
