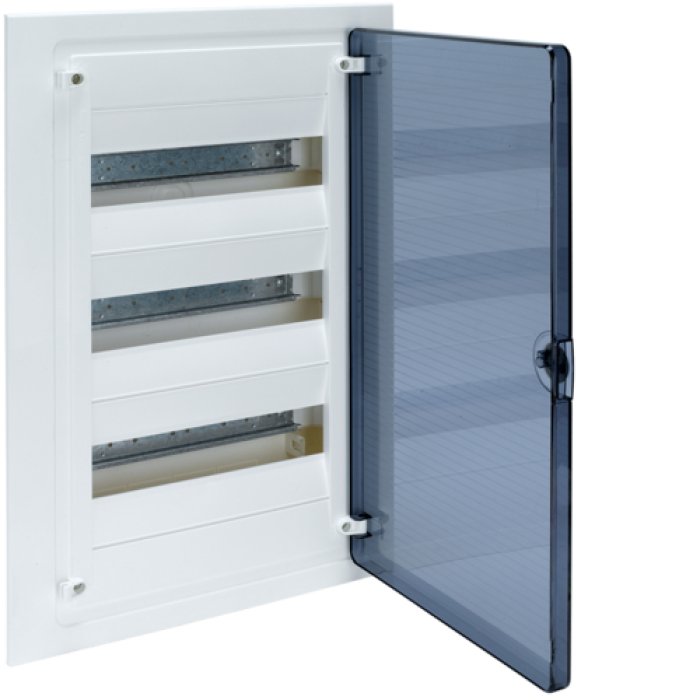

Shield with transparent doors, 36 mod. (3x12), GOLF

Description Shield with transparent doors, 36 mod. (3x12), GOLF

Installation type: Vbudovaniye
Number of modules: 36
Number of rows: 3
Number of modules per row: 12
Door type: Prozori
Body material: Thermoplastic
Door material: Polycarbonate
Protection level (IP): IP30
Protection against mechanical impacts (IK): IK07
Electrosachist class: II (insulation)
Nominal voltage: 400 V AC
Nominal strum: 63 A
Appearance standard: EN 60670-24, EN 62208, EN 61439-3
Testing with baked dart (parts used to dry the jet-conducting elements): 850 °C
Testing with baked dart (other parts of the body): 650 °C
Operating temperature: -25 °C to +40 °C
Storage temperature: from -35 °C to +70 °C
Body color: White (RAL 9010)
Color of doors: Prozory (dimmable)
Where the door opens: 180°
External height: 596 mm
External width: 348 mm
External depth: 98 mm
Mounting niche depth: 72 mm
Included: Terminal blocks N+PE
Type of terminal blocks: Znimni
Possibility of installing a lock: Yes
