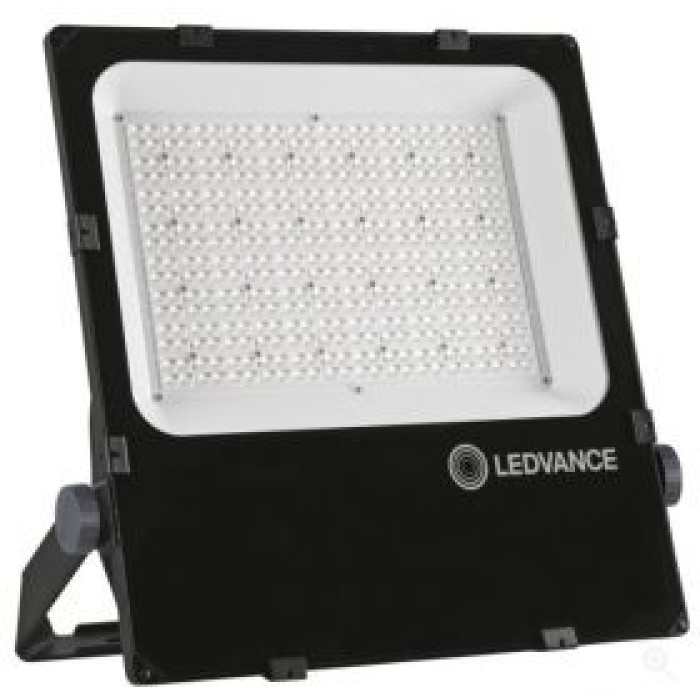

Floodlight Ledvance (Osram) FL PFM 290W/3000K ASYM 45X140 BK

Description Floodlight Ledvance (Osram) FL PFM 290W/3000K ASYM 45X140 BK

ELECTRICAL CHARACTERISTICS
Rated power 290.00 W
Operating mode Built-in LED driver
Rated voltage 220… 240 V
Power factor λ> 0.90
Network frequency 50/60 Hz
Max. no. lumens at open circuit. B16 A 4
Max. no. lumens at open circuit. C10 A 4
Max. no. lumens at open circuit. C16 A 7
Inrush current 29 A
Total harmonic distortion <20%
Inrush time Th50 1000 μs
LUMINAIRE CONTROL TRANSMISSION DATA
Low flicker Yes
PHOTOMETRIC DATA
Color temperature 3000 K
Luminous flux 35300 lm
Luminous efficacy 120 lm / W
Standard deviation of color matching ≤5 SDCM
Light color (designation) Warm white
Color rendering index Ra> 80
LIGHT TECHNICAL CHARACTERISTICS
Beam angle 45 ° x 140 °
DIMENSIONS AND WEIGHT
Length 567.0 mm
Width 465.0 mm
Height 97.0 mm
Product weight 9500.00 g
Cable length 2000 mm
COLORS AND MATERIALS
Casing material Aluminum
Product color Black
Casing color Black
Lid material Glass
TEMPERATURES AND OPERATING CONDITIONS
Ambient temperature range -30… + 50 ° C.
LIFE LIFE
Number of switching cycles 100,000
Service life L70 / B50 at 25 ° C 100,000 h
Service life L80 / B10 at 25 ° C 70,000 h
Lifespan L90/B10 at 25°C 30,000 h
ADDITIONAL PRODUCT DATA
Mounting type Surface
Installation location Wall / Pole / Floor / Ceiling
Low flicker Yes
FEATURES
Dimmable Yes
Dimmable No
Connection type Cable, 3-pole
Replaceable LED module Not replaceable
CERTIFICATES AND STANDARDS
IK protection class (impact resistance) IK08
Glow wire test according to IEC 60695-2-12 650°C
Photobiological safety group EN62778 RG1
Protection class I
Protection type IP66
Luminaire with limited surface temperature, class "D" Yes
Standards CE / CB / ENEC / TÜV SÜD / EAC / RoHS
LOGISTIC DATA
Storage temperature range -40… + 70 ° C.
