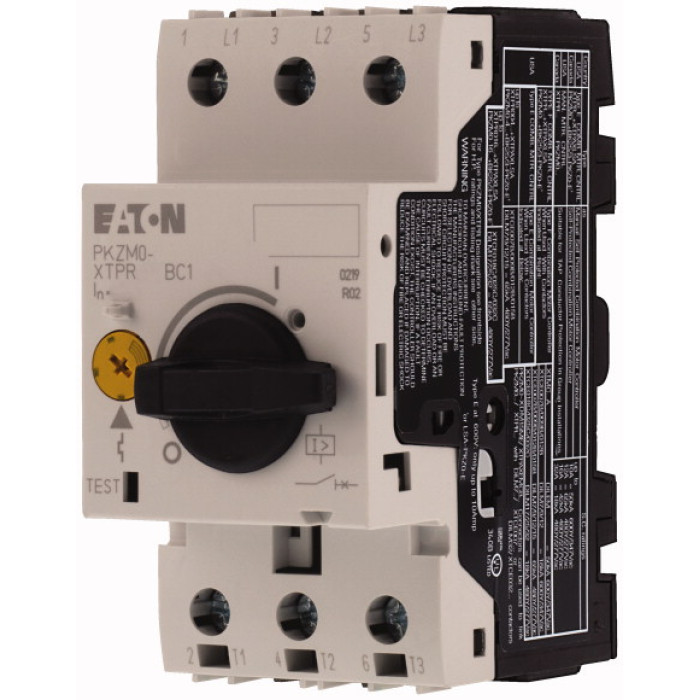

Automatic motor protection switch PKZM0-12A 50kA EATON

Description Automatic motor protection switch PKZM0-12A 50kA EATON

Nominal flow: 12 A
Adjustment range of thermal sprayer: 8.0 - 12.0 A
Magnetic sprayer setting level: 180 A
Rated operating voltage: up to 690 V AC
Nominal insulation voltage: 690 V AC
Nominal impulse voltage: 6000 V
Number of poles: 3
Sputter type: Thermomagnetic
Switching limit value for short circuit Icu at 400 V AC: 50 kA
Commutation limit for short circuit Icu at 690 V AC: 3 kA
Operating switching capacity with short circuit Ics at 400 V AC: 50 kA
Operating switching capacity with short circuit Ics at 690 V AC: 3 kA
Class zahistu vid revantazhenya: Class 10
Mechanical wear resistance: 100,000 cycles
Electrical wear resistance: 100,000 cycles
Zakhistu's steps: IP20
Mounting method: On a 35 mm DIN rail or screw
Connection type: Screw terminals
Maximum cable cut for connection (wire): 6 mm²
Maximum cable cut for connection (hard): 10 mm²
Terminal tightening torque: 1.7 Nm
Width: 45 mm
Height: 93 mm
Glibin: 76 mm
Vaga: 0.24 kg
Operating temperature range: -25 °C to +55 °C
Saving temperature range: -40 °C up to +80 °C
