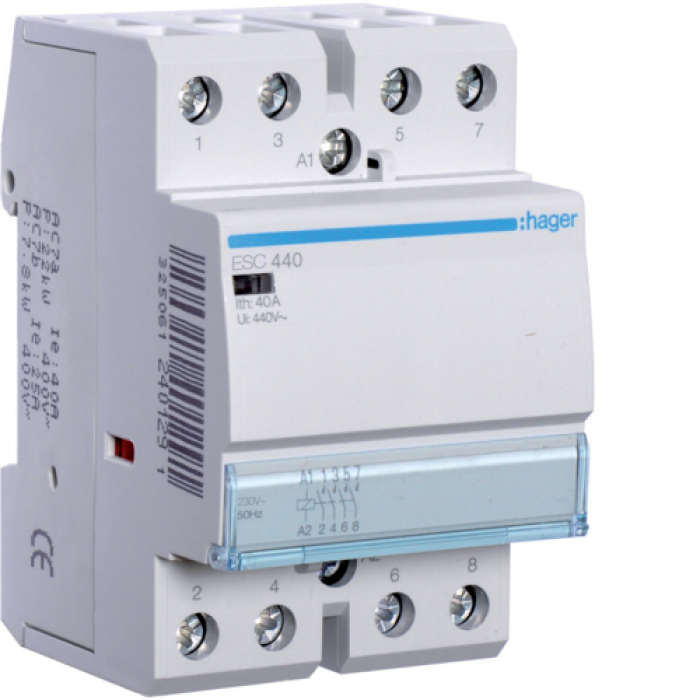

Contactor 40A, 4NV, 230V Hager ESC440 ESC440

Description Contactor 40A, 4NV, 230V Hager ESC440 ESC440

Nominal flow: 40 A
Number of poles: 4
Contact type: НВ
Nominal voltage of the control coil: 230 V AC
Coil voltage frequency: 50/60 Hz
Nominal operating voltage: 250 V AC
Nominal insulation voltage: 440 V
Nominal impulse voltage: 4 kV
Stacking category: AC-1
Maximum power AC-1 at 400 V: 27.6 kVA
Maximum voltage AC-1 at 230 V: 9.2 kVA
Increased tension of the coil: 10 VA
Increased tension of the cat in the morning: 2.7 VA
Mechanical wear resistance: 1,000,000 cycles
Electrical wear resistance: 100,000 cycles
Operating temperature range: -10 °C to +50 °C
Saving temperature range: -40 °C to +70 °C
Crossing of connecting hard conductors: 1.5 - 25 mm²
Crossing for connecting wire conductors: 1.5 - 16 mm²
Terminal tightening torque: 2.5 Nm
Number of DIN modules: 2
Protection level: IP20
Height: 83 mm
Width: 35.7 mm
Glibina: 63 mm
Vaga: 0.256 kg
Compliance with standards: EN 61095, IEC 61095
Terminal type: Gvintovi
