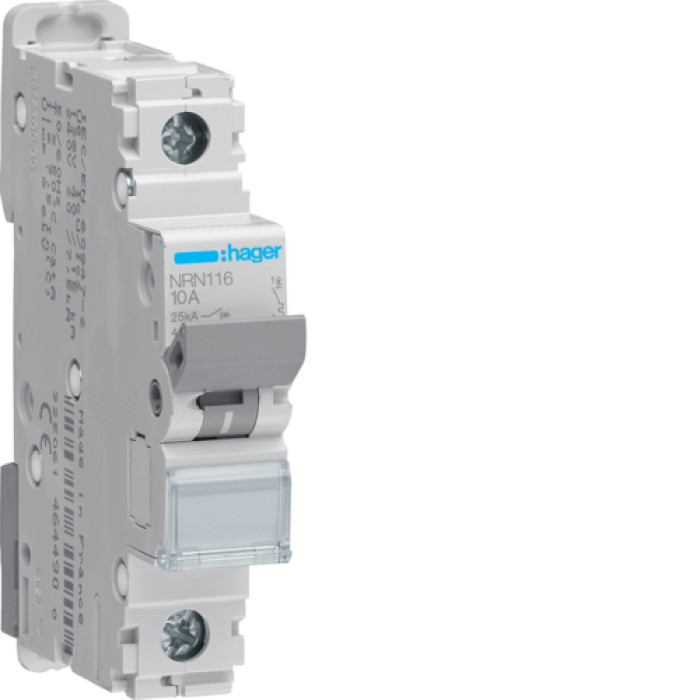

Hager 1P 25kA C-16A 1M Circuit Breaker, NRN116

Description Hager 1P 25kA C-16A 1M Circuit Breaker, NRN116

Number of poles: 1
Nominal flow In: 16 A
Connection characteristic: C
Nominal limiting voltage Icu: 25 kA
Nominal operating voltage Ics: 25 kA
Rated operating voltage Ue: 230/400 V AC
Nominal frequency: 50/60 Hz
Nominal insulation voltage Ui: 500 V
Nominal impulse voltage Uimp: 6 kV
Class energy exchange: 3
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Modular width: 1
Overall width: 17.5 mm
Height: 83 mm
Installation depth: 70 mm
Mounting type: DIN rail
Maximum overcut for single-core cable: 35 mm²
Maximum overcut of multi-core cable: 25 mm²
Maximum terminal tightening torque: 2.8 Nm
Protection level IP (terminal): IP20
Step zakhistu IP (front panel): IP40
Operating temperature range: -25°C to +70°C
Saving temperature range: -40°C to +80°C
Congestion step: 2
Compliance with standards: IEC/EN 60947-2
