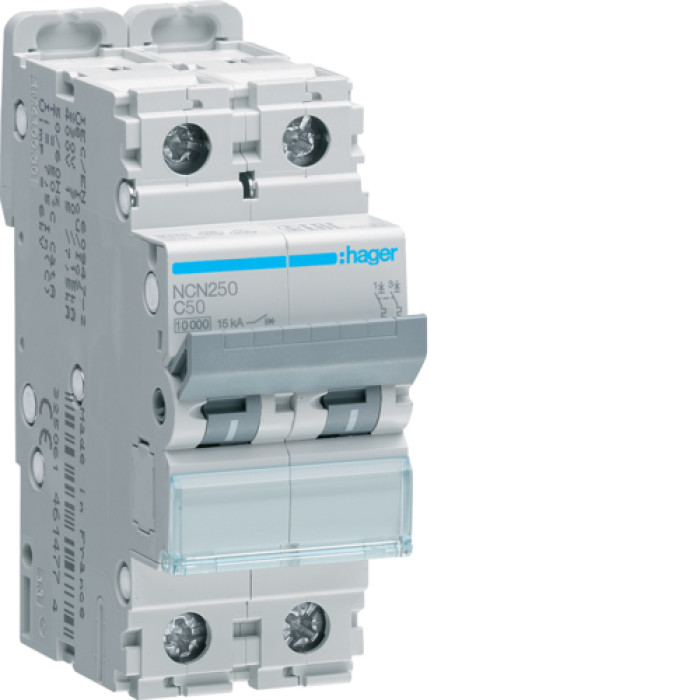

Hager 2P 10kA C-50A 2M Circuit Breaker, NCN250

Description Hager 2P 10kA C-50A 2M Circuit Breaker, NCN250

Number of poles: 2
Nominal power: 50 A
Specification characteristics: C
Nominal voltage: 10 kA
Width in modules: 2
Nominal operating voltage: 10 kA
Width in modules: 2
Nominal operating voltage Strum: 230/400 V
Nominal frequency: 50/60 Hz
Nominal impulse voltage: 4 kV
Energy class: 3
Electrical wear resistance: 10,000 cycles
Mechanical Wear resistance: 20,000 cycles
Protection level: IP20
Operating temperature range: -25 to +60 °C
Maximum crossbar of the connected cable (hard): 25 mm²
Maximum crossbar Connected cable (bundle): 16 mm²
Mounting type: DIN rail
Compliance with standards: EN 60898-1
Overvoltage category: III
Terminal tightening torque: 2.8 Nm
